NETGEAR ANT2409
ProSafe Indoor/Outdoor 9 dBi Omni-directional Antenna

NETGEAR ProSafe ANT2409 Indoor/Outdoor 9 dBi Omni-directional Antenna

NETGEAR Products
NETGEAR Wireless Accessories
ProSafe ANT2409 Indoor/Outdoor 9 dBi Omni-directional Antenna
#ANT2409-20000S
List Price: $182.00
Our Price: $127.00

More pricing below, click here!

Overview:

Product Features:

  • Connects to NETGEAR WAG302, WG302, WG102, FWG114Pv2, FWG114P, and DG824M.
  • 2.4 GHz frequency range for 802.11b/g applications
  • Omni-directional for point-to-multipoint bridging and hot spot applications.

Optimize WLAN Range and Power

NETGEAR’s ProSafe line of antennas and accessories for 802.11b and 802.11g devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. When planning a network that incorporates wireless, varying facility sizes, construction materials, distance between transmission points and physical obstructions must be accounted for. With both directional and omni-directional antennas, low-loss cables, mounting hardware, and other accessories, installers can customize a value-priced wireless solution that meets the requirements of even the most challenging applications. All NETGEAR antennas are FCC-approved to work with the following NETGEAR models: WAG302, WG302, WAG102, WG102, FVG318, FWG114P.

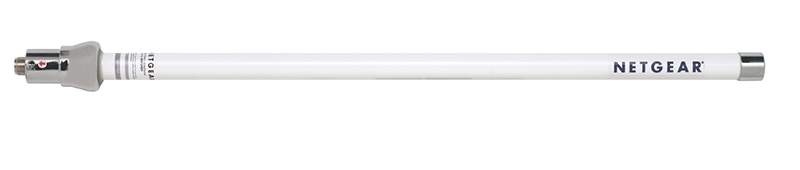

ProSafe 9 dBi Indoor/Outdoor Omni-directional Antenna

The ANT2409 indoor/outdoor antenna provides extended point-to multi-point coverage for wireless 802.11b or 802.11g devices. Optimal for medium range indoor or outdoor point-to-multi-point applications. Included lightning arrestor (a $90 value) helps prevent damage due to lightning-induced surges or static electricity in outdoor applications. Typically hung from crossbars of drop ceilings or on a rooftop, the waterproof and UV resistant ANT2409 includes wall and pole mounting materials for installation ease, antenna cable and grounding cable not included.

Note:To obtain optimal results in extending wireless range with antenna installations, it is recommended that a qualified, professional installer is consulted for site survey and proper installation.

To comply with FCC rules the ANT2409 antenna should only be used with devices that have been FCC approved for use with the ANT2409. Please check the NETGEAR web site at http://tools.netgear.com/legal/fcc_antennas.html for an updated list of FCC approved devices.

For EU, use of any antenna requires careful planning and extra consideration to comply with EU emissions and health standards and regulations. It is recommended that a qualified professional installer service is consulted for site survey and proper installation. Antenna installation must comply with the maximum level authorized by each country.

Devices that comply with EU regulations to work with the ANT2409 are listed at http://tools.netgear.com/legal/eu_antennas.html.

Specifications:

NETGEAR ANT2409 Specifications
Description
  • 9 dBi Omni-directional Antenna with reverse N female connector
Typical Application
  • Indoor/outdoor medium range point-to-multipoint connections
Maximum Outdoor Range1
  • 1.3 km (~0.8 mile)
Frequency Range
  • 2400 ~ 2485 MHz
Gain2
  • 9 dBi
Polarization
  • Vertical
Operating Temperature
  • 30 to 80º C (-22 to 176º F)
Weight
  • 0.9 kg/2 lbs.

1 Range estimation is based on two wireless nodes, each with an ANT2409 antenna attached, associating with each other at 54 Mbps under ideal line-of-sight conditions.
2 Gain: A ratio of decibels to an isotropic antenna that is commonly used to measure antenna coverage.

Documentation:

Download the NETGEAR Antennas and Cables Datasheet (PDF).
