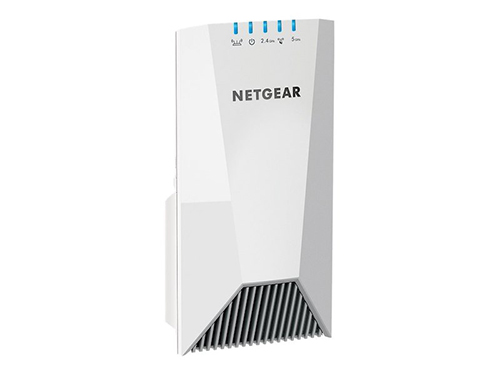

NETGEAR EX7500
Nighthawk X4S Tri-Band WiFi Mesh Extender


NETGEAR EX7500

NETGEAR Products
NETGEAR Wi-Fi Range Extender
USA: FREE Ground ShippingNETGEAR Nighthawk X4S Tri-Band WiFi Range Extender
#EX7500-100NAS
List Price: $279.29
Our Price: $191.04
USA: FREE Ground ShippingSpecial Promo!NETGEAR Nighthawk X4S Tri-Band WiFi Range Extender

*Special Pricing, ends June 30, 2018!

#EX7500-100NAS-PROMO
List Price: $279.29
Special Price: $159.00

More pricing below, click here!

Overview:

Nighthawk X4S Wall-Plug Tri-band WiFi Mesh Extender provides better WiFi speeds to hard-to-reach areas of your home. This Nighthawk Mesh Extender creates powerful whole home WiFi up to 100% faster speeds than Dual-Band Range Extenders. Nighthawk X4S with FastLane3 Technology delivers super-fast Tri-Band WiFi with combined speeds up to 2.2Gbps. It uses your existing WiFi to easily extend coverage of your home’s WiFi at a touch of a button. Enjoy seamless WiFi like never before with the same WiFi name and password. Now, you can move from room-to-room while streaming video on your mobile device or stay on a video call without interruptions.

  • Fast AC2200 WiFi with combined speeds up to 2.2Gbps
  • Tri-band WiFi with FastLane3 Technology for faster WiFi speeds to more devices
  • MU-MIMO for simultaneously streaming to multiple devices
  • Creates a Whole Home WiFi System
  • Works with any WiFi router

Ideal Uses

  • In a Dead Zone? Not Anymore.
    Eliminate WiFi dead zones and enjoy seamless WiFi connectivity and signal strength from your living room to backyard.
  • Enjoy Life in the Fast Lane.
    With FastLane3 Technology, use both WiFi bands to establish one super high-speed connection; ideal for HD streaming and gaming.
  • WiFi Everywhere
    Plug into any outlet and give your existing WiFi coverage a boost in any room with the same network name (SSID).

WiFi Analytics App

How strong is your WiFi signal? Use the NETGEAR WiFi Analytics app & get advanced analytics to optimize your existing or newly extended WiFi network. Check your network status, WiFi signal strength, identify crowded WiFi channels & much more!

Here’s what you can do with the WiFi Analytics App!

  • Get a network status overview
  • Check WiFi signal strength
  • Measure WiFi channel interference
  • Keep track of WiFi strength by location
  • and more...

WiFi Analytics App

Features:

Nighthawk Mesh Wi-Fi

  • Easily create a whole home WiFi system with your existing router
  • Extends coverage of your home’s WiFi with same WiFi name & security password
  • Uninterrupted 4K video streaming as you roam room-to-room
  • Push button setup

Fastlane3 Technology

  • Super-fast Tri-band WiFi with combined speeds up to 2.2Gbps
  • Dedicated WiFi link avoids cutting the extended WiFi bandwidth in half
  • Four high-performance internal antennas for extended WiFi coverage

Ultimate Connectivity

  • Smart Roaming automatically connects your mobile devices to the best available WiFi
  • Quad-Core processor for seamless 4K video streaming & lag-free gaming
  • MU-MIMO enables simultaneous streaming of data for multiple devices
  • Boost the range of your WiFi to every corner of your home

The NETGEAR patented FastLane3 Technology is comprised of Tri-band WiFi that creates a dedicated WiFi link between the extender and router and an optimized antenna design in the extender, giving you more speed to more devices. These elements combined create a powerful solution to extend WiFi throughout your home.

FastLane FastLane3 Technology
This feature maximizes performance by limiting devices to one band. Only one band is available for devices to use while the other one is dedicated to connection to the router. This feature maximizes performance using dedicated third band for connecting to the router. Devices get to use both 2.4GHz and 5GHz bands of the extender for connection. By using dedicated band, there is little performance impact when new clients join the network.
FastLane needs to be enabled in the GUI. FastLane3 Technology is automatically enabled.
Use case: More bandwidth for more devices. Use case: Enhances your gaming and streaming experience.

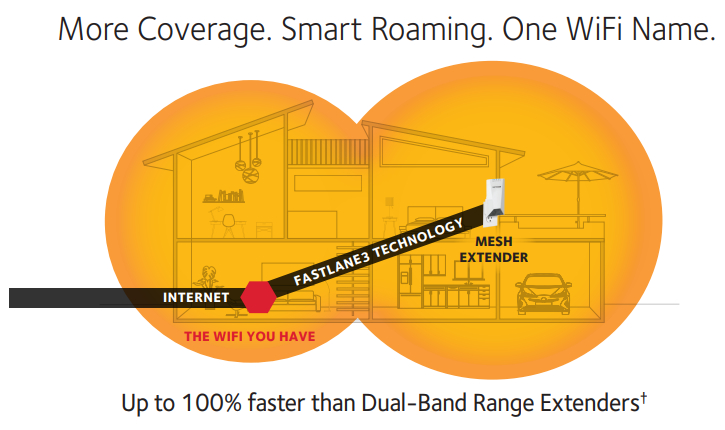

More Coverage. Smart Roaming. One WiFi Name.

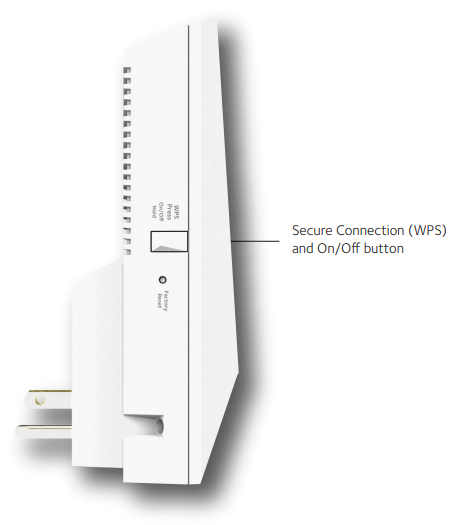

Connection Diagram:

Connection Diagram

Specifications:

NETGEAR EX7500 Specifications
WiFi Technology 802.11ac
WiFi Performance AC2200
WiFi Band
  • AC2200† WiFi
  • Band 1: 400Mbps @2.4GHz - 256QAM
  • Band 2: 866Mbps @5GHz - 256QAM
  • Band 3: 866Mbps @5GHz - 256QAM
Form Factor Wall Plug
Key Features
  • AC2200 WiFi with combined speeds up to 2.2Gbps
  • Dedicated WiFi link to router avoids cutting the extended WiFi bandwidth in half
  • Smart Roaming connects your mobile devices to the best available WiFi
  • One WiFi Name for your whole home
  • Works with any router to extend your existing WiFi
  • Four high-performance internal antennas increase range
  • MU-MIMO for simultaneous streaming of data to multiple devices
  • Powerful quad-core processor for optimal wireless and wired performance
  • Smart Connect intelligently selects optimal WiFi band for every device
Ease of Use
  • Simple browser installation—great for mobile devices
  • Push ‘N’ Connect using WPS
  • Power on/off button
Physical Specifications
  • Dimensions: 3.3 x 3.0 x 6.34 in (83.82 x 76.2 x 161.04 mm)
  • Weight: 0.67lb (0.304kg)
Package Contents
  • AC2200 Nighthawk X4S Tri-band WiFi Mesh Extender (EX7500)
  • Quick start guide
Standards
  • IEEE 802.11 b/g/n 2.4GHz
  • IEEE 802.11 a/n/ac 5GHz
  • IEEE 802.11 k
System Requirements
  • 2.4 and/or 5GHz 802.11 a/b/g/n/ac WiFi router or gateway
  • Microsoft Internet Explorer 8.0, Firefox 20 or Safari 5.1 or Google Chrome 25.0 browsers or higher
NETGEAR Warranty This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller.

1 Works with devices supporting Wi-Fi Protected Setup (WPS). Data throughput, signal range, and wireless coverage per sq. ft. are not guaranteed and may vary due to differences in operating environments of wireless networks, including without limitation building materials and wireless interference. Specifications are subject to change without notice. The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.

Documentation:

Download the NETGEAR EX7500 Datasheet (PDF).
