NETGEAR FS116P
ProSafe 16-Port Desktop Switch With 8 Port PoE

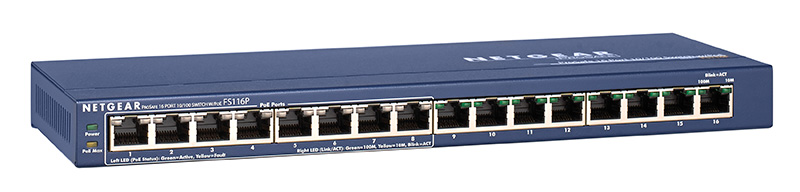

NETGEAR FS116P ProSafe® 16-Port Desktop Switch With 8 Port PoE

NETGEAR Products
NETGEAR Unmanaged Switches
NETGEAR ProSafe FS116P 16-Port Desktop Switch With 8 Port PoE
#FS116PNA
List Price: $245.00
Our Price: $163.00

More pricing below, click here!

Overview:

Product Features:

  • NETGEAR GreenSupply power to wireless access points and surveillance cameras over Cat-5 cabling
  • IEEE 802.3af power on up to 8 ports
  • Powers up to 8 Access points, 8 VoIP phones, 8 IP-based Surveillance cameras

Affordable Power over Ethernet Switching

Now you can have a powerful, high-speed network on a small scale. NETGEAR’s ProSafe GS116 Gigabit Ethernet Switch lets you build a system that provides full, dedicated 1000 Mbps connections so you can move very large files across your network instantly. The standards-based GS116 helps to protect your existing and future network infrastructure investments by painlessly integrating other 10, 100, and 1000 Mbps devices. This potent switch is ideal for workgroups or quickly upgrading workstations to full Gigabit speed, plus it’s packed with ease-of-use features to simplify your workday experience. It’s compact design fits neatly into small work spaces and, since it’s self-cooling without a fan, it runs silently and unobtrusively.

Flexible

Choose to plug in up to 16 Ethernet or Fast Ethernet devices and mix in up to eight 802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these 802.3af-compliant devices where they belong - high up on walls and ceiling for maximum coverage - or anywhere else you need them. Power and data are carried over standard Cat-5 cabling.

Plug and Play

The standards-based ProSafe FS116P senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects 802.3afcompliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.

Quiet and Compact

Engineered for compact convenience, it is only 1-inch high and 4-inches deep, with a durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates in your small office environment.

Great Value

With data switching and Power over Ethernet integrated into one unit, the FS116P saves space, reduces cables and eliminates the requirement for dedicated electrical outlets - lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all a great benefit for a modest price.

Specifications:

NETGEAR FS116P Specifications
Network Protocol and Standards Compatibility
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3x Flow Control
  • IEEE 802.3af DTE Power via MDI
Network Ports
  • 16 auto speed-sensing 10/100 Mbps RJ-45 ports
Performance Specifications
  • Forwarding modes: Store-and-forward
  • Bandwidth: 3.2 Gbps (non-blocking)
  • Network latency: Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
  • Buffer memory: 96 KB embedded memory per unit
  • Address database size: 1,000 media access control (MAC) addresses per system
  • Mean time between failure (MTBF): 116,009 hours (~ 13 years)
  • Acoustic noise: 0 dB
LEDs
  • System: Power, PoE Maximum Power
  • Per Port: Link, Activity, Speed, PoE Active, PoE Status
Power Supply
  • Total Power Consumption: 72W maximum
  • Total PoE Power Budget: 51W maximum
  • 802.3af power consumption: 55W maximum (ports 1 – 8)
  • 48V DC; plug is localized to country of sale
Physical Specifications
  • Dimensions (w x d x h): 11.3 x 4.1 x 1.1 in. (287 x 103 x 27 mm)
  • Weight: 0.9 kg (2.0 lb)
Environmental Specifications
  • Operating temperature: 32˚ to 104°F (0˚ to 40° C)
  • Storage temperature: 14˚ to 158°F (-10˚ to 70°C)
  • Operating humidity: 90% maximum relative humidity, non-condensing
  • Storage humidity: 95% maximum relative humidity, non-condensing
  • Operating altitude: 10,000 ft (3,000m) maximum
  • Storage altitude: 10,000 ft (3,000m) maximum
Electromagnetic Emissions
  • CE mark, commercial
  • FCC Part 15 Class A
  • EN 55 022 (CISPR 22)
  • VCCI Class A
  • C-Tick Class A
Electromagnetic Immunity
  • EN 55024
Safety
  • CE mark, commercial
  • CE/LVD EN60950
System Requirements
  • UTP Category 5 or better cables
  • Network card for each PC or server
  • Network software (e.g., Windows®, Linux®, Mac OS
Warranty
  • Switch: NETGEAR Lifetime Warranty
  • Power adapter: NETGEAR 2-year Warranty
Package Contents
  • ProSafe 16-port 10/100 Switch with Power over Ethernet (FS116P)
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/support information card

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

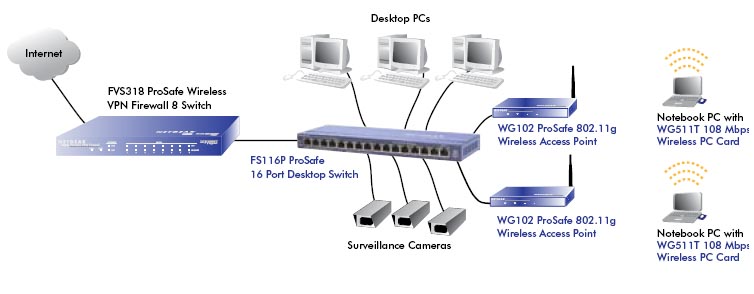

Diagram:

NETGEAR FS116P Diagram

Documentation:

Download the NETGEAR FS116P Datasheet (PDF).
