NetGuardStore.com is a NETGEAR Powershift Platinum Partner.NETGEAR GS108

ProSafe® 8-Port Gigabit Ethernet Desktop Switch

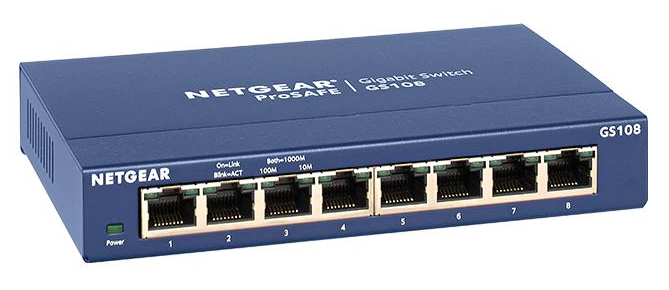

NETGEAR GS108 ProSafe® 8-Port Gigabit Ethernet Desktop Switch

NETGEAR Products
NETGEAR Unmanaged Desktop Switches
ProSafe 8-Port Gigabit Ethernet Desktop Switch
*$15.00 Mail-in-Rebate till 3/31/12 - Learn More!		 #GS108NA
List Price: $110.00
Our Price: $75.00



NETGEAR ProSafe logoNETGEAR GS108 Overview:

NETGEAR GreenProduct Features:

  • Provides maximum performance, connecting up to 10x faster than Fast Ethernet
  • Makes it simple to combine Fast Ethernet and Gigabit devices in your network
  • Incorporates Plug-and-Play ease of use

Energy Star PartnerGigabit Power, 10/100 Simplicity

  • Connects up to 10x faster than Fast Ethernet for maximum performance†
  • Simple to combine Fast Ethernet and Gigabit devices in your network
  • NETGEAR Green features provide energy savings
  • Plug-and-play installation delivers ease of use

Features

  • ProSafe 5- and 8-port Gigabit Desktop Switches connect your network with the dual advantages of performance and convenience
  • Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network
  • Supports Windows® and Macintosh® platforms
  • LEDs make it easy to monitor link, speed, and activity
  • AutoUplink™ technology automatically adjusts for two common types of cables
  • Compact metal case for desktop or wall mounting

NETGEAR Green

  • Up to 60% lower power consumption
  • Auto power-down mode saves energy when port is unused
  • Efficient Energy Star compliant power supply
  • Packaging manufactured with at least 80% recycled materials

Technical Specifications:

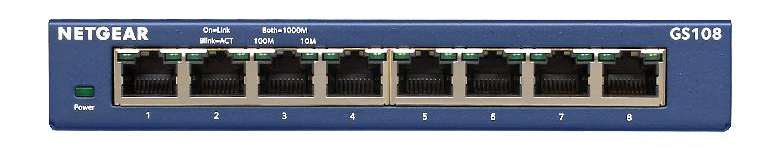

NETGEAR GS108 Front

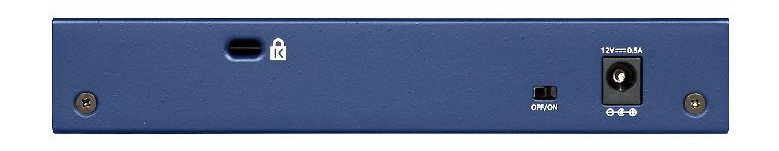

NETGEAR GS108 Rear

NETGEAR GS108 Specifications
Network Protocol and Standards Compatibility
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Flow-duplex Control
  • IEEE 802.1p priority tags
  • Honors IEEE 802.1p and DSCP priority tags
  • Jumbo frame support (9,720 byte)
Network Ports
  • 8 auto-sensing UTP ports
Forwarding Modes
  • Store-and-forward
  • 192 KB on-chip packet buffering
Performance Specifications
  • Bandwidth: 16 Gbps (non-blocking)
  • Forward rate (10 Mbps port): 14,800 packets/sec
  • Forward rate (100 Mbps port): 148,000 packets/sec
  • Forward rate (1000 Mbps port): 1,480,000 packets/sec
  • Address database size: 4,000 media access control (MAC) addresses per system
  • Mean time between failure (MTBF): 1 million hours (~110 years)
  • Acoustic noise: 0 dB
LEDs
  • System Power
  • Link, speed, and activity indicators per port built into each
Power Supply
  • Power adapter: 12W, 12V DC, 1A
  • Maximum power consumption:
    • 4.92 W (if cable length > 10m)
    • 4.08 W (if cable length < 10m)
Physical Specifications
  • Dimensions (w x d x h): 158 x 105 x 27 mm (6.2 x 4.1 x 1.1 in)
  • Weight: 0.522 kg (1.15 lb)
Environmental Specifications
  • Operating temperature: 32˚ to 122°F (0˚ to 50° C)
  • Storage temperature: -4˚ to 158°F (-20˚ to 70°C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 95% non-condensing
Electromagnetic Emissions
  • FCC Class B
  • EN 55 022 (CISPR 22)
  • VCCI Class B
Safety Agency Approvals
  • C-Tick, CE Mark
System Requirements
  • Windows®, Linux®, Mac OS®
  • 10 Mbps: UTP Cat 3 (or better)
  • 100 Mbps: UTP Cat 5 (or better)
  • 1000 Mbps: UTP Cat 5e (or better)
  • Network card for each PC or server
Warranty
  • Switch: NETGEAR Lifetime Warranty
  • Power adapter: NETGEAR 2-year Warranty
Package Contents
  • ProSafe 8-port Gigabit Ethernet Desktop Switch 10/100/1000 (GS108v3)
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/support information card

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

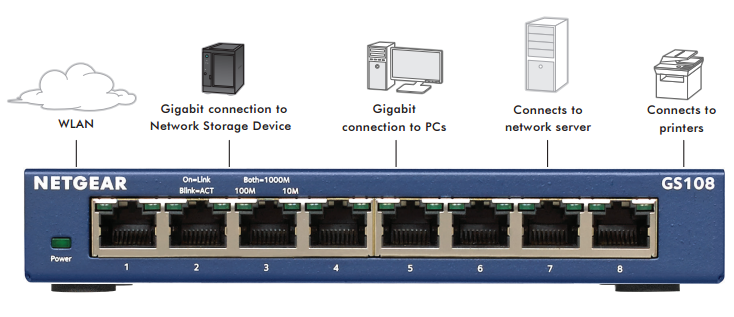

Diagram:

NETGEAR GS108 Diagram

Documentation:

PDF File
Download the NETGEAR GS108 Datasheet (.PDF)
