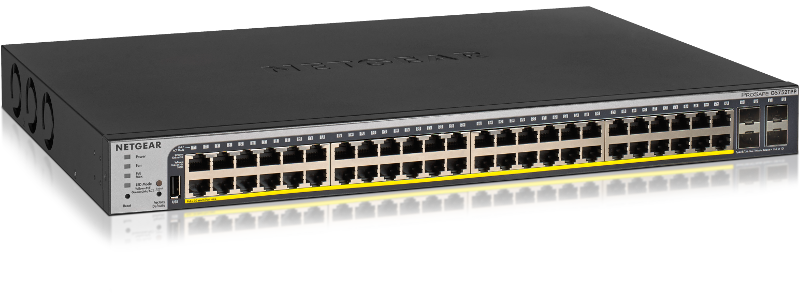

NETGEAR GS752TPP
48-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (760W)

NETGEAR GS752TPP

NETGEAR Products
NETGEAR Smart Switches
48-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (760W)
*Includes a Life Time Hardware Warranty, 90 Days of Free Tech Support, and Lifetime Online Tech Support
#GS752TPP-100NAS
List Price: $1,247.93
Our Price: $884.12

More pricing below, click here!

Overview:

NETGEAR GS752TPP

All ports PoE+ with up to 760W PoE budget – Select your new network engine!

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 33.42dB, the GS752TPv2 at 36.94dB and the GS752TPP at 39.74dB.

Highlights

The NETGEAR PoE+ Gigabit Smart Managed Pro Switches provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones, IP cameras, video-over-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/ IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.

Key features include:

  • Quiet rack mounting operation with 27.08dB to 39.74dB at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
  • Dynamic ARP for increased security targeting a class of Man in the Middle attack
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues
  • SNMP v1, v2c, v3 and RMON remote monitoring

Build a future-proof network with NETGEAR:

  • Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
  • Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network
  • PoE+ support on all models and on all ports
  • 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network

Smart IT, not Big IT

  • Easy-to-use Web browser-based management GUI makes setup and management simple
  • Standards-based technology ensures interoperability with any standards-based devices in the existing network
  • Dual firmware images improve reliability and uptime to your network
  • Worry-free with NETGEAR ProSAFE® LIFETIME Hardware Warranty*
  • Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day Replacement Warranty
  • Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support**
  • LIFETIME Online Chat Technical Support
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies—not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller. ** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes nextbusiness-day hardware replacement.

Features and Benefits:

HARDWARE FEATURES BENEFITS
1000BASE-T Copper Ethernet PoE+ connections Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
1000BASE-X Fiber SFP ports Four dedicated Gigabit SFP ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.
Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs 190W, 380W or 760W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) – Connect multiple power demanding devices to your network with a single wire for power and connectivity.
Low Acoustics Temperature-based fan-speed control minimizes system acoustic noise in any environment starting at 27.08dB at 25°C (77°F) ambient.
Energy Efficient Ethernet (IEEE 802.3az) Maximum power reduction for ongoing operation cost savings.
SOFTWARE FEATURES BENEFITS
Comprehensive IPv6 Support for Management, ACL and QoS Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
IPv4 & IPv6 Static Routing A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
Robust security features:
  • 802.1x authentication (EAP)
  • Port-based security by locked MAC
  • ACL filtering to permit or deny traffic based on MAC and IP addresses
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
Comprehensive QoS features:
  • Port-based or 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based ingress and egress rate limiting
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.
IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Protected Ports Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP Snooping and Dynamic ARP Inspection Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. Use the DHCP snooping bindings database per port and per VLAN to drop incoming packets that do not match any binding and to enforce source IP/MAC addresses for malicious users traffic elimination.
Dynamic VLAN Assignment (RADIUS) IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
Dual Firmware Images Dual firmware images for transparent firmware updates with minimum service interruption.

At a Glance:

Hardware at a Glance:

FRONT REAR SIDE
Model Name Form-Factor 10/100/1000 Base-T RJ45 ports 1000BASE-X Fiber SFP Ports PoE+ 802.3at Ports (Budget) Power Supply Fans
GS728TPv2 Rackmount 24 4 24 PoE+ (190W) 1 internal PSU, fixed 2 internal fans, fixed
GS728TPPv2 Rackmount 24 4 24 PoE+ (380W) 1 internal PSU, fixed 2 internal fans, fixed
GS752TPv2 Rackmount 48 4 48 PoE+ (380W) 1 internal PSU, fixed 2 internal fans, fixed
GS752TPP Rackmount 48 4 48 PoE+ (760W) 1 internal PSU, fixed 3 internal fans, fixed

Software at a Glance:

LAYER 2+ / LAYER 3 LITE FEATURES
Web Browser-based GUI (HTTP/HTTPS),
PC-Based Smart Control Center Utility (SCC)
RMON, SNMP
L2, L3, L4, ingress IGMP and MLD Snooping Yes Yes Static, Dynamic, Voice, MAC, Protocol-based, and Private VLAN LLDP-MED, 2RADIUS,
802.1X
Yes

Performance at a Glance:

Model Name Packet buffer CPU ACLs MAC Address Table ARP Table VLANs Fabric Latency (Max Connection Speed) Static Routes (IPv4 & IPv6) Multicast IGMP Group
GS728TPv2 1.5MB MIPS-34Kc 700MHz Single Core
128MB DDR RAM
32MB FLASH
100 shared 16K MAC
512 ARP
256 VLANs
56Gbps line-rate 1G Copper: <3.35μs
1G Fiber: <2.5μs
IPv4: 32
IPv6: 32
512
GS728TPPv2
GS752TPv2 104Gbps line-rate
GS752TPP

Diagram:

GS7XXTP(P)-diagram

Within small and medium-sized organizations — especially in the hospitality, catering, education, and retail industries — there is growing deployment of VoIP phones, IP security cameras, video-over-IP endpoints, proximity sensors, LED lighting, secure access door locks, and other IoT devices. The dense proximity of these devices requires network switches capable of supporting PoE so a network manager can add power-hungry devices to the network with a single wire for power AND connectivity. Wave 2 802.11ac wireless access points and pan-tilt-zoom HD surveillance cameras with features such as night vision and built-in motion tracking also require PoE+ power (802.3at), increasing the power demands on PoE switches.

The new 24-port and 48-port NETGEAR Smart Managed Pro Switches support dense deployments of these modern high-power PoE+ devices. They offer powerful Layer 2 and Lite Layer 3 (static routing) features for IPv4 and IPv6 with enhanced performance and a focus on usability within SMB environments:

  • 190W (GS728TPv2) or 380W (GS728TPPv2) PoE budget across 24 Gigabit PoE+ ports
  • 380W (GS752TPv2) or 760W (GS752TPP) PoE budget across 48 Gigabit PoE+ ports
  • 4 dedicated Gigabit SFP fiber ports for aggregation to the network core
  • Quiet rack mounting operation with 27.08dB to 39.74dB max at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
  • Include VLANs, Private VLAN, PoE scheduling, ACLs, DiffServ, LACP, MVR and STP
  • Easy-to-use Web browser-based management GUI — No need for an IT expert
  • LIFETIME Limited Warranty, Next Business Day Replacement, Tech support
