NETGEAR JGS516
ProSafe 16-Port Gigabit Ethernet Switch

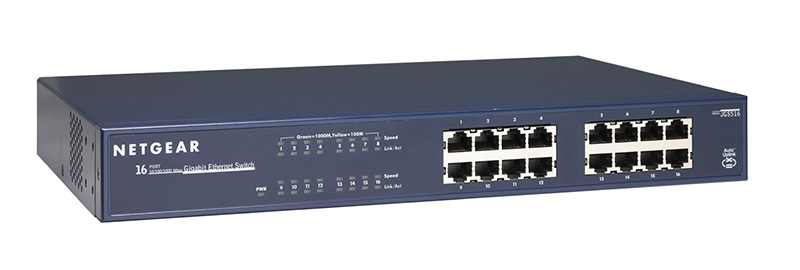

NETGEAR JGS516 ProSafe® 16-Port Gigabit Ethernet Switch

NETGEAR Products
NETGEAR Unmanaged Switches
ProSafe JGS516 16-Port Gigabit Ethernet Switch
#JGS516NA
List Price: $275.00
Our Price: $174.00

More pricing below, click here!

Overview:

Product Features:

  • 16 10/100/1000 ports
  • Powerful, non-blocking backplane
  • Affordable enough for desktop connections

Take Gigabit to the Desktop

NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

High Capacity

1000-Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.

Affordable

Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.

Flexible

Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network.

Convenient

Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop but come with a rack-mount kit. They are also compatible with PC, Macintosh, Linux, and Unix operating systems.

Specifications:

NETGEAR JGS516 Specifications
Network Protocol and Standards Compatibility
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Full-duplex Flow Control
Network Ports
  • 16 10/100/1000 Mbps twisted-pair RJ-45 ports
Performance Specifications
  • Forwarding modes: Store-and-forward
  • Bandwidth: 32 Gbps
  • Forward rate (1000 Mbps port): 1,480,000 packets per sec
  • Forward rate (100 Mbps port): 148,000 packets per sec
  • Forward rate (10 Mbps port): 14,800 packets per sec
  • Jumbo frames latency (1000 to 1000 Mbps): 20 μs max
  • Packet buffer memory: 2Mb
  • MAC Address database size: 8,000
  • Mean time between failure (MTBF): 309,000 hours (~ 35 years)
  • Acoustic noise: 40 dBA
LEDs
  • Unit: Power
  • Per port: Link, activity, speed
Power Supply
  • Power Consumption: 25W max
  • 100~240V; 50-60 Hz; plug is localized to country of sale
Physical Specifications
  • Dimensions (w x d x h): 43 x 330x 207 mm (1.7 x 13 x 8.2 in)
  • Weight: 1.62 kg (3.57 lb)
Environmental Specifications
  • Operating temperature: 32° to 122° F (0° to 50° C)
  • Storage temperature: 14° to 158° F (-20° to 70° C)
  • Operating humidity: 90% maximum relative humidity, non-condensing
  • Storage humidity: 95% maximum relative humidity, non-condensing
Electromagnetic Compliance
  • CE mark, commercial
  • FCC Part 15 Class A
  • VCCI Class A
  • EN 55022 (CISPR 22), Class A
  • EN 50082-1
  • EN 55024
  • C-Tick
Safety Agency Approvals
  • UL listed (UL 1950)/cUL
  • IEC 950/EN 60950
System Requirements
  • UTP Category 5 network cables or better
  • Network card for each PC or server
Warranty
  • NETGEAR Lifetime Warranty
Package Contents
  • 16-port Gigabit Ethernet Switch (JGS516)
  • Power adapter
  • Installation guide
  • Rack-mount kit
  • Warranty/support information card

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.
**Maximum power savings when compared to previous version of this NETGEAR product.

Diagram:

NETGEAR JGS516 Diagram

Documentation:

Download the NETGEAR JGS516 Datasheet (PDF).
