NETGEAR ProSecure UTM9S

NETGEAR UTM9S Overview:

View Product Demo (Pop-up)

The ProSecure UTM series of all-in-one gateway security firewalls combine best-of-breed enterprise-strength security technologies from Commtouch®, Mailshell™, and Sophos™ with patented* Stream Scanning Technology to protect businesses against today's Web, email, and network threats. Malware hosted on Web pages, phishing attacks, spam, virus infected emails, hackers, denial-of-service attacks, and other threats are now all part of a regular repertoire of sophisticated blended attacks that bypass traditional non-UTM firewalls with ease. Because comprehensive network security solutions require an abundance of processing power to examine network traffic in real time, existing all-in-one security solutions often use rudimentary security technologies that trade comprehensiveness for speed. True security must satisfy the requirements in both speed and coverage.

All-in-one Network Security - Redefined

ProSecure Unified Threat Management (UTM) firewalls combine performance with comprehensive security coverage. Patented Stream Scanning Technology enables the ProSecure UTM to utilize virus and malware threat databases from ProSecure and Sophos™ that are over one million signatures in size - up to 400x more comprehensive than legacy all-in-one platforms at a speed that is up to 5x faster than conventional methods. This architecture, combined with best-of-breed hybrid in-the-cloud Web filter and anti-spam technologies along with proven firewall, IPS, and VPN functionality, form the ideal growing business gateway security solution.

Revolutionary Stream Scanning Platform

Given the high performance requirements of scanning latency sensitive Web traffic, incorporating enterprise-grade security software technologies onto traditional all-in-one platforms has been a very difficult task. Traditional batch-based scanning methods introduce large amounts of latency into network traffic and can slow Web browsing to a crawl. All-in-one solutions in the past have tried to overcome this by minimizing the malware signature set, scanning only a select few file types, or by avoiding Web scanning altogether. This exposes an entire vector of the network to malware-based attacks. The ProSecure UTM features patented Stream Scanning Technology which analyses data streams as they enter the network. This significantly reduces latency and allows the use of an extensive malware signature library for scanning – thus offering an unprecedented combination of speed and coverage in an all-in-one solution.

Simple Setup, Ease of Management

The ProSecure UTM will easily replace any existing firewall or router. A simple 10-step setup wizard guides you through installation and the UTM will be up and running in minutes. Administration is performed through an intuitive Web-based interface. Set granular policies and alerts, check summary statistics and graphical reports, drill down to IP address-level data, and integrate log data with standard network management tools using SNMP. Malware and IPS signature, software, and firmware updates are all handled by the UTM - online and automatically.

For many administrators and IT personnel one of their biggest nightmares is the management of individual licenses or "seats." Buying additional licenses when computers and personnel are added to the network is time-consuming and costly. The ProSecure UTM offers Web and email protection subscriptions with no "per-user " licensing.

Expandability

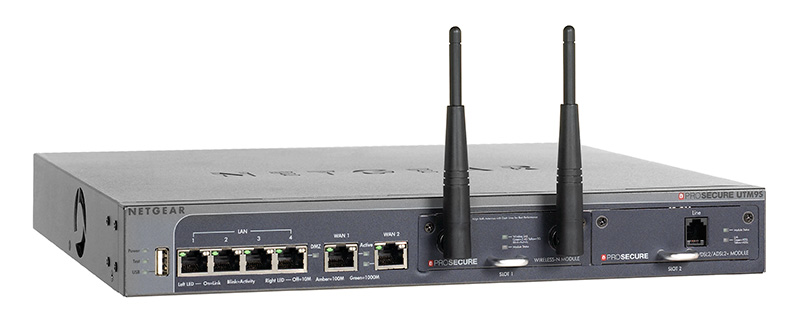

The ProSecure UTM9S has two modular slots that allow for optional interface cards to be added to tailor the appliance for specific installation requirements.

A VDSL/ADSL2+ Modem Module, available in both Annex A and Annex B versions, furnishes direct, always-on Internet connectivity. VDSL capability provides Internet connection speeds up to three times faster than traditional ADSL2+ DSL networks while providing backwards compatibility with ADSL2+.

In conjunction with two onboard RJ45 WAN ports for redundancy and failover, the VDSL/ADSL 2+ Modem Module, if installed, can be employed either as the primary WAN connection or as a third WAN port in a redundant/ load balancing scenario.

A Wireless-N Module provides access point capability to connect Wireless-N clients at both 2.4 GHz and 5.0 GHz frequencies at up to 15x the speed and 10x the coverage of legacy 802.11g networks.

Backwards compatibility with 802.11a, 802.11g, and 802.11b network devices allows for flexible deployment scenarios.

ProSecure UTM Features and Highlights:

Optional Modules:

UTM Series Comparison:

UTM Comparison Chart

	UTM5	UTM9S	UTM10	UTM25	UTM50	UTM150
Sizing Guidelines
Average Anti-virus Throughput¹	15 Mbps	21 Mbps	20 Mbps	25 Mbps	45 Mbps	130 Mbps
Stateful Packet Inspection Firewall Throughput¹	90 Mbps	130 Mbps	90 Mbps	127 Mbps	400 Mbps	900 Mbps
Maximum VPN Throughput¹	40 Mbps	50 Mbps	50 Mbps	70 Mbps	200 Mbps	400 Mbps
Maximum Concurrent Connections	8,000	16,000	12,000	27,000	40,000	65,000
VLANs	255	255	255	255	255	255
Content Security
Web and Email Scanned Protocols	HTTP, HTTPS, FTP, SMTP, IMAP, POP3
Stream Scanning
Inbound and Outbound Inspection
Signature-Less Zero Hour Protection
Malware Signatures	1.2 Million	1.2 Million	1.2 Million	1.2 Million	1.2 Million	1.2 Million
Automatic Signature Updates	Hourly	Hourly	Hourly	Hourly	Hourly	Hourly
Web Content Filters	Filter By: HTML Body Keywords, File Extension
Web Object Filters	ActiveX, Java™, Flash, JavaScript™, Proxy, Cookies
Email Content Filters	Filter By: Subject Keywords, Password-protected Attachments, File Extension, File Name
Distributed Spam Analysis
Distributed Spam Analysis Supported Protocols	SMTP, POP3
Anti-spam Real-time Blacklist (RBL)
User Defined Spam Allowed/Block Lists	Filter By: Sender Email Address, Domain, IP Address, Recipient Email Address, Domain
Distributed Web Analysis w/ 64 categories
Instant Messaging (IM) Control	MSN® Messenger, Yahoo!® Messenger, mIRC, Google Talk
Peer to Peer (P2P) Control	BitTorrent™, eDonkey, Gnutella
Maximum Number of Users	Unlimited
Firewall Features
Stateful Packet Inspection (SPI)	Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, WAN/LAN Ping Response Control
Intrusion Detection & Prevention (IPS)
WAN Modes	NAT, Classical Routing
ISP Address Assignment	DHCP, Static IP Assignment, PPPoE, PPTP
NAT Modes	1-1 NAT, PAT
Routing	Static, Dynamic, RIPv1, RIPv2
VoIP	SIP ALG
DDNS	DynDNS.org, TZO.com, Oray.net
Firewall Functions	Port Range Forwarding, Port Triggering, DNS proxy, MAC Address Cloning/spoofing, Network Time Protocol NTP Support, Diagnostic Tools (ping, DNS lookup, trace route, other), Auto-Uplink on Switch Ports, L3 Quality of Service (QoS) ,LAN-to-WAN and WAN-to-LAN (ToS)
DHCP	DHCP Server, DHCP Relay
User Authentication for VPN	Active Directory, LDAP, Radius, Local User Database
Security Policies Based on Active Directory with Single Sign-On (SSO)
PCI Compliance Two Factor Authentication Support
VPN
Site to Site VPN Tunnels	5	10	10	25	50	150
Simultaneous SSL VPN Tunnels	2	5	5	13	25	75
IPsec Encryption Algorithm	DES, 3DES, AES(128,192,256 bit)/SHA-1, MD5
Key Exchange	IKE, Manual Key, Pre-Shared Key, PKI, X.500
IPsec NAT Traversal
iPhone Native VPN Client Support
Included ProSafe VPN Client Lite Licenses	0	0	1	1	3	3
SSL Version Support	SSLv3, TLS1.0
SSL Encryption Support	DES, 3DES, ARC4, AES(128,256bit)
SSL Message Integrity	MD5, SHA-1, MAC-MD5/SHA-1, HMAC-MD5/SHA-1
SSL Certificate Support	RSA, Diffie-Hellman, Self
SSL VPN Platforms Supported	Windows 2000 / XP / Vista® (32bit), Windows 7 (32 and 64bit), Mac OS® X 10.4.x/10.6.x
Deployment
VLAN Support
Multi-WAN Fail-over
Intelligent Traffic Load Balancing Based on Traffic Byte Count
Configuration Wizards	Setup, IPsec VPN, SSL VPN
Logging and Reporting
Management	HTTP/HTTPS, SNMP v2c
Reporting	Summary Statistics, Graphical Reporting, Automatic Outbreak Alerts, Automatic Malware Notifications, System Notifications
Logging	Traffic, Malware, Spam, Content Filter, Email Filter, System, Service, IPS, Port Scan, IM, P2P, Firewall, IPsec VPN, SSL VPN
Log Delivery	Management GUI Query, Email Delivery, Syslog
Hardware
Gigabit RJ45 Ports WAN/LAN	1/4	2/4	1/4	2/4	2/6	4/4
DMZ Interfaces (Configurable)	1	1	1	1	1	1
Flash Memory/RAM	2 GB/512 MB	2 GB/512 MB	2 GB/512 MB	2 GB/1 GB	2 GB/1 GB	2 GB/1 GB
USB Ports	1	1	1	1	1	1
Certifications	ICSA: Anti-virus VPNC: AES Interop, Basic Interop Checkmark: Anti-Malware, Anti-Spam, Enterprise Firewall, VPN, IPS, URL Filtering
Major Regulatory Compliance	FCC Part 15 Class A, CE mark commercial, VCCI, C-Tick Class A, CE/LVD, cUL, RoHS, China RoHS
Storage and Operating Temperatures	Operating Temperature 0-45°C (32°-113°F), Storage Temperature -20-70°C (-4°-158°F)
Humidity	Operation 90% Maximum Relative, Storage 95% Maximum Relative
Power Input Rating	100-240V, AC/50-60Hz, Universal Input, 1.2 Amp Max			100-240V, AC/50-60Hz, Universal Input, 1.0 Amp Max
Dimensions (W x H x D) cm	33 x 4.3 x 20.9	33 x 4.3 x 28.6	33 x 4.3 x 20.9	33 x 4.3 x 20.9	44 x 4.3 x 25.3	44 x 4.3 x 25.3
Dimensions (W x H x D) in	13 x 1.7 x 8.2	13 x 1.7 x 11.25	13 x 1.7 x 8.2	13 x 1.7 x 8.2	17.3 x 1.7 x 9.96	17.3 x 1.7 x 9.96
Weight kg/lb	2.1/4.6	2.56/5.65	2.1/4.6	2.1/4.6	2.9/6.4	2.9/6.4
Package Contents	ProSecure UTM Appliance , Power Cable, Rubber Feet, Resource CD, Rackmount Kit, Warranty Card, Quick Installation Guide, Subscription Card (Bundles Only)
Hardware Warranty	Lifetime

¹ Throughput measured in a lab environment. Actual performance may vary.
*Available on the UTM25 and UTM50.

Screenshots:

	Network Config › WAN Settings › WAN 1 ISP Settings Determine the ISP settings for the primary WAN.
	Network Security › IPS › Global Enable intrusion prevention and port scan detection.
	Application Security › Services Configure scanning and security policies for email, Web, IM, and P2P.
	VPN › IPsec VPN › Internet Key Exchange (IKE) Policies Configure IKE policies.
	Users › Users Add and manage user accounts on the UTM on any configured domains.
	Administration › Remote Management Configure the UTM for remote management.
	Monitoring › System Status Contains information on the overall status of the UTM, including current version, most recent update of all software elements, and license status information. Network address and interface information is also communicated.
	Support › Online Support Enable a secure online support connection with the ProSecure™ Support Team.
	Wizards › Setup Wizard › Welcome Page Select the type of Wizard.

Sizing Guidelines:

ProSecure™ UTM appliances are situated between an organization's internal network and the Internet. The UTM acts as a stateful packet inspection firewall, keeping track of TCP connection state for every connection that is maintained through the UTM. Moreover, the UTM manages an organization's Internet usage and protects these organizations from Internet borne malware, spam, viruses, and inappropriate web surfing. With the ProSecure™ UTM appliance sitting between the organization and the Internet, it is critical that the UTM appliance is sized appropriately and matches the performance needs of the organization.

There are no industry-standard metrics for determining the model to select, as every organization is unique and displays different network traffic characteristics. Moreover, the performance of the UTM can vary widely depending on a number factors including the complexity of the firewall rules loaded, the number of current active VPN users, the IPS signatures employed, the number of active connections used by each user, and a host of other metrics, including, last but not least, the number of protocols inspected by the Antivirus engine and the number of signatures applied to the AV engine.

As such, NETGEAR highly recommends that you contact your ProSecure™ authorized VAR who is well versed in UTM sizing to benchmark your organization and recommend the best model for your needs. That said, NETGEAR generally uses several specifications to roughly evaluate the applicability of an UTM appliance:

Firewall Throughput:

A starting point is to estimate the throughput your organization requires between its internal network and the Internet. As the UTM appliance sits between your internal network and the Internet, firewall throughput number is the total amount of traffic that can be passed with the UTM in place.

Concurrent Sessions:

Users typically engage in a host of activities that consume TCP sessions. Web browsing over HTTP and HTTPS, FTP file transfers, Email over POP3, SMTP, and IMAP, Instant Messenger, Peer to Peer Traffic, TELNET, SSH and streaming audio and video all consume TCP sessions.

On the average, "normal" users typically consume 100-300 active TCP sessions. Virus Infected PCs turned into zombies can often consume upwards of 1000 active TCP sessions, although ProSecure™ UTM appliances have administrator-definable limits to contain infected PCs from consuming an excessive number of TCP sessions.

Anti-Virus Throughput & Virus Coverage:

Anti-Virus scanning can be performed against files or data embedded in time-sensitive applications such as web browsing over HTTP(s) or in latency-tolerant applications such as Email. Because Anti-Virus speed is directly correlated to the number of signatures applied in the scanning process and in the protocols being scanned, Anti-Virus throughput can typically be inflated by reducing the signature set size or reducing the numbers of protocols scanned. Thus, Anti-Virus effectiveness is often a balance between speed and thoroughness. ProSecure™ UTM appliances employ signature sets that are up 400x larger than competing legacy small business UTM solutions while employing patent-pending Stream Scanning technology to vastly increase Anti-Virus throughput.

UTM Appliance Model Comparison
