NETGEAR RAX120
Leading the New Era of WiFi 6

NETGEAR RAX120

NETGEAR Products
NETGEAR WiFi Routers
USA: FREE Ground ShippingNetgear Nighthawk RAX120 IEEE 802.11ax Ethernet Wireless Router
#RAX120-100NAS
List Price: $775.84
Our Price: $558.69

More pricing below, click here!

Overview:

Leading the New Era of WiFi 6

Nighthawk® AX12 WiFi 6 Router is powered by the industry’s latest WiFi 6 (802.11ax) standard with 4 times increased data capacity in a dense environment to handle today and tomorrow’s growing home network. Blazing-fast combined WiFi speeds up to 6Gbps and AX optimized 64-bit 2.2GHz Quad-core processor powers smart home automation, ultra-smooth 4K UHD streaming, online gaming, and more.

WiFi 6 - Ready for Today and Tomorrow’s Smart Home

Introducing WiFi 6 - the latest generation of WiFi that delivers four times better performance than AC WiFi.

With innovative technologies, such as Orthogonal Frequency-Division Multiple-Access (OFDMA), 8x8 Multi-User MIMO, and intelligent scheduling, WiFi 6 delivers a huge boost in speed and total capacity. Rising to the challenges of modern smart home demands, this new standard of WiFi is ready to support more devices with better reliability and faster speeds.

Capacity

WiFi 6 gives you improved network capacity for more WiFi devices. Have more fun with the uninterrupted 4K/8K streaming, gaming, and the smart home experience. With MU-MIMO, WiFi 6 supports up to eight simultaneous streams for the number of users that can be served double at the same time as compared to an AC router.

Speed

Get ultra-fast wireless speeds with more connections for all devices with less congestion. You’ll get some blazing connection speeds of 1Gbps or more, 4K/8K streaming, & VR/AR gaming.

Range

Experience reliable and stronger WiFi coverage indoors and outdoors for all your devices. High-performance antennas on the router amplify WiFi signals for maximized range and reliable coverage.

Features:

12 Stream WiFi 6 - 4X Better Performance

Twelve WiFi spatial streams - four in the 2.4GHz band, and eight in the 5GHz band - offer four times the device capacity as compared to typical 2x2 AC WiFi. WiFi 6 also supports sending up to eight multi-user MIMO transmissions at a time, up from four for AC WiFi. This results in a significantly improved network capacity

8 High-Performance Antennas

Eight high-performance antennas extend wireless range indoors and out. Router signals are amplified to maximize reach and reliability, letting you use your WiFi in more places. Get stronger WiFi signals throughout your home, whether you’re gaming in the basement or need that extra coverage for your outdoor security cameras.

64-bit 2.2GHz Quad-Core Processor

Ultra-fast processor for smoother 4K UHD streaming, online/VR gaming, and a stronger, more reliable WiFi experience. This powerful processor is optimized for AX ensuring speed and performance for even more smart home devices and high-speed applications.

New Multi-Gigabit Wired Speeds

The multi-gigabit Ethernet port gives you 5 times faster speeds than the wired speed of a typical Gigabit port over Cat 5 cables. Use the four gigabit Ethernet LAN ports to connect more wired devices for faster file transfer and uninterrupted connections. Combine two gigabit Ethernet ports to further improve the aggregated file transfer speed.

Versatile Multi-Gig Internet Support

Maximize your Internet speeds up to 5Gbps with new versatile Ethernet wired connections. Used for LAN or Internet connectivity, it is 5 times the wired speed of a typical Gigabit port. Or aggregate two Ethernet ports for up to 2Gbps of Internet speed.

Speed

Get ultra-fast wireless speeds for better 4K/8K UHD streaming, gaming or video conferencing experience.

  • UP TO 6GBPS SPEEDS - 1.2 + 4.8 Gbps with 12-stream connectivity
  • 8x8 MU-MIMO - Go faster by simultaneously streaming to multiple devices
  • AX OPTIMIZED QUAD-CORE PROCESSOR - Powerful 2.2GHz processor boosts wireless, wired & WAN-to-LAN performance
  • MULTI-GIG 5G/2.5G/1G ETHERNET PORT - 5 times the wired speed of typical Gigabit Ethernet port for LAN or faster Internet
  • 1024-QAM - 25% increased data efficiency and faster speeds than a 256-QAM router
  • TWO SUPERSPEED USB 3.0 PORTS - Up to 10x faster than USB 2.0
  • MULTI-GIG EXPERIENCE - Maximize your available Internet speeds with link port aggregation support. Ability to aggregate two Gigabit ports or use Multi-Gig 5G Ethernet as WAN port (configurable)

Reliable Connections

There’s nothing more frustrating than lost connections! With NETGEAR’s advanced features & best-in-class technology, you’ll reduce interference & enjoy more reliable WiFi connectivity.

  • BEAMFORMING+ - Improve range and performance for 5GHz devices
  • SIMULTANEOUS DUAL BAND WIFI - Supports two WiFi bands simultaneously to double the available bandwidth and provide a reliable, dedicated WiFi network for smooth online gaming without any network congestion
  • PRE-OPTIMIZED ANTENNAS - Unfold and set antennas on the router, no further adjustment required. The AX12 antennas come pre-optimized for best WiFi performance
  • ADDITIONAL DFS CHANNELS - Gives you an interference-free experience

Ease Of Use

Start enjoying your new device faster than ever. NETGEAR wants to make sure installation and management is simple & easy, so you can connect quickly & make sure you stay that way.

  • SMART CONNECT - Intelligently selects the fastest WiFi band for every device connection. One WiFi name for the entire home
  • NIGHTHAWK® APP - Easily set up your router and get more out of your WiFi. Includes remote access to manage your network away from home
  • AX WIFI SUPPORTS ALL CURRENT WIFI DEVICES - Backward compatible with WiFi 5 and earlier generation devices
  • VOICE CONTROLLED BY AMAZON ALEXA® & THE GOOGLE ASSISTANT - Control your NETGEAR WiFi network with simple voice commands

Security

Maintain high security across your network to ensure your privacy & family is safe while online. Whether it’s preventing phishing & spyware or just limiting access for kids & guests, NETGEAR has you covered.

  • VPN SUPPORT - On PC, MAC, & now also with OpenVPN Connect app on iOS & Android, securely access your home network & Internet connection from your mobile device remotely
  • VPN CLIENT SUPPORT - Protect your network identity and prevent DDoS attack
  • GUEST NETWORK - Separate and secure network for your guests
  • AUTOMATIC FIRMWARE UPDATE - Delivers latest security patches to the router
  • STRONGER PROTECTION - Stronger WiFi password protection with WiFi CERTIFIED WPA3

8x8 Multi-User MIMO

Using multi-user MIMO technology, routers can stream data to multiple devices simultaneously. That means faster downloads and smoother streaming for your devices. WiFi 6 extends MU-MIMO to 8-stream support so it can support double the number of simultaneous transmissions as compared to 4x4 MU-MIMO AC WiFi routers.

Orthogonal Frequency Division Multiple Access (OFDMA)

Using the OFDMA feature of WiFi 6, the WiFi traffic is managed much more efficiently since data is transmitted from different devices concurrently, rather than having each device’s data wait for its turn. This results in an efficient use of air-time, reduced latency, and increased bandwidth to add more devices to your network.

Ultra-Powerful AX-Optimized Quad-Core Processor

Nighthawk AX12 WiFi 6 Router, powered by a 64-bit 2.2GHz quad-core processor, is built for performance at an ultimate level. The ultra-fast processor enables the router to seamlessly handle data intensive applications such as 4K/8K UHD video streaming, VR/AR gaming, as well as provide a stronger, more reliable WiFi experience. This powerful processor is optimized for AX making intelligent spontaneous decisions to schedule data traffic to maximize WiFi Bandwidth utilization.

State-of-the-Art Industrial Design

This next-generation Nighthawk AX12 WiFi 6 Router design conceals eight (8) high-performance antennas under the ‘wings’. The antennas are optimally positioned for best WiFi performance and extend strong and reliable WiFi coverage indoors and outdoors.

Nighthawk App

The NETGEAR Nighthawk® App makes it easy to set up your router and get more out of your WiFi. With the app, you can install your router in a few steps - just connect your mobile device to the router network and the app will walk you through the rest. Once set up, you can use the intuitive dashboard to pause the Internet on your connected devices, run a quick Internet speed test, and much more!

  • Remote Management - Easily monitor your home network anytime, anywhere
  • Internet Speed Test - Check the broadband speeds from your service provider
  • Pause Internet - Pause the Internet to any device
  • Traffic Meter - Track Internet data usage
  • Guest Networks - Set up separate WiFi access for guests
  • Quick Setup - Get connected in just minutes
  • Get it at nighthawk-app.com

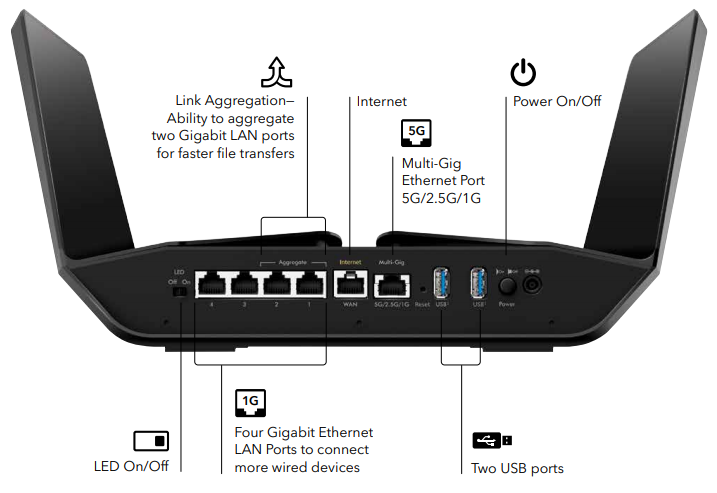

Connection Diagram:

Connection Diagram

Specifications:

Package Contents

  • NETGEAR® Nighthawk® AX12/12-Stream AX6000 WiFi 6 Router (RAX120)
  • Ethernet cable
  • Quick start guide
  • Power adapter

Physical Specifications

  • Dimensions: 12.2 x 7.48 x 1.77 in (310 x 190 x 45 mm)
  • Weight: 3 lbs (1364g)

Standards

  • Two (2) USB 3.0 ports
  • 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1.2Gbps
  • 5GHz AX: 8x8 (Tx/Rx) 1024 QAM 20/40/80/80+80MHz, up to 4.8Gbps
  • Five (5) 10/100/1000Mbps - (1 WAN & 4 LAN) Gigabit Ethernet ports

Technical Specifications

  • WiFi 6 (802.11ax) Dual Band WiFi (AX6000)
    • 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1.2Gbps
    • 5GHz AX: 8x8 (Tx/Rx) 1024 QAM 20/40/80/80+80MHz, up to 4.8Gbps
    • Backwards compatible with 802.11a/b/g/n/ac WiFi
  • 8-client OFDMA - Improved capacity and efficiency
  • 1024-QAM - 25% data efficiency and faster speeds than a 256-QAM router
  • Powerful 64-bit Quad-Core 2.2GHz Processor
  • Longer range with 8 high-performance antennas
  • Additional DFS channels for interference free experience
  • Stronger WiFi password protection with WiFi CERTIFIED WPA3™
  • Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
    • 1 WAN & 4 LAN
    • Dual Gigabit Ethernet Port Aggregation
  • 5G/2.5G/1G Multi-Gig Ethernet LAN/WAN port
  • IPv6 Support (Internet Protocol Version 6)
  • On/Off LED light switch

Key Features

  • 4X Better Performance than an AC Router - 12 Stream WiFi with up to 1.2 + 4.8 Gbps for ultra-fast wireless speeds
  • More WiFi for More Devices - OFDMA§ allows efficient data transmission for up to 8 devices at the same time
  • Up to 8 Simultaneous WiFi Streams - 8-stream MU-MIMO enables up to four (4) 2x2 devices at the same time.
  • Maximized Range - Eight (8) antennas extend wireless range coverage indoors and out
  • AX Optimized Powerful Processor - 64-bit 2.2GHz quad-core processor ensures smooth 4K UHD streaming & gaming - ideal for Gigabit Internet speeds.
  • Multi-Gig Ethernet Port 5G/2.5G/1G - 5 times the wired speed of typical Gigabit port
  • Smart Connect - Intelligently selects the fastest WiFi band for every device connection. One WiFi name for the entire home
  • Nighthawk® App - Easily set up your router and get more out of your WiFi. Includes remote access to manage your network away from home
  • WiFi 6 supports all current WiFi devices and is backward compatible with WiFi 5 and earlier generation devices
  • Works with Amazon Alexa® & the Google Assistant - Control your NETGEAR WiFi network with simple voice commands

Support

  • 90-day complimentary technical support following purchase from a NETGEAR authorized reseller
  • Join the NETGEAR Community Forum.

System Requirements

  • • Microsoft® Windows 7, 8, 10, Vista® , XP® , 2000, Mac OS® , UNIX® , or Linux®
  • Microsoft® Internet Explorer® 11 or higher, Microsoft Edge, Google Chrome® 55 or higher, Firefox® 45 or higher, Safari® 10 or higher

Security

  • Supports WPA3, the latest and cutting-edge WiFi security protocol
  • Automatic firmware update delivers latest security patches to the router
  • Guest network access—separate & secure
  • VPN Support—Secure access to your home network away from home
  • VPN Client Support—Protect your network identity and prevent DDoS attacks

Documentation:

Download the NETGEAR RAX120 Datasheet (PDF).
