NETGEAR ReadyDATA 5200 Series
Unified Network Storage

NETGEAR ReadyDATA 5200 Series

NETGEAR Products
NETGEAR ReadyDATA
ReadyDATA 5200 (diskless)
#RD5200-100WWS
List Price: $10,000.00
Our Price: $6,999.00
NETGEAR ReadyDATA 5200 Series Expansion Chassis
24-bay, 4U expansion chassis for the ReadyDATA 5200, Supports SATA, SAS and SSD drives, Supports 1TB, 2TB and 3TB for up to 72TB of capacity, Each ReadyDATA 5200 can support up to two expansion chassis
ReadyDATA 4U expansion chassis with 6G SAS Cable
#EDA4000-100WWS
List Price: $5,000.00
Our Price: $3,699.00

More pricing below, click here!

Overview:

Product Features:

Every ReadyDATA 5200 ships with a full suite of advanced features such as block-level replication, deduplication, and thin provisioning. Add expansion to at many as 180TB and the dramatic perforce boost that comes from supporting a mix of SSD, SAS and SATA drives within a volume, and ReadyDATA redefines the concept of storage for small and medium businesses, remote offices/branch offices (ROBO), and departments within enterprise organizations.

Never before have so many features come standard on an enterprise-class storage device, especially one with a price tag that is comfortable for even the smallest of IT organizations. The ReadyDATA 5200 is easy-to-use unified storage from NETGEAR designed to address serious data management issues with a single system.

Common challenges the ReadyDATA 5200 is built to address include:

  • Efficiently managing rampant data growth with technology like deduplication and compression
  • Designing simple and cost-effective disaster recovery plans with free block-level replication
  • Easily transitioning to virtualized infrastructures with 10GbE and virtual networking

Scalable Capacity:

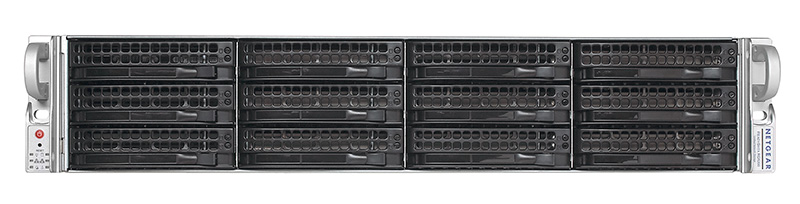

The ReadyDATA family of unified storage was built with the needs of a growing business in mind. ReadyDATA 5200 is 2U, 12-bay storage that supports 1TB, 2TB and 3TB drives for a total of 36TB capacity.

Each ReadyDATA 5200 can support up to two expansion chassis (the 4U, 24-bay ReadyDATA EDA4000), for a fully populated capacity of up to 180TB. Also, new drives can be easily added while the system is running for seamless expansion on-the-fly.

Peak Performance:

For meeting the differing needs of specific applications, ReadyDATA 5200 users can mix-and match SATA, near-line SAS, SAS, and SSD drives within volumes to provide a stunning boost to performance and flexible capacity.

Dual 10GbE ports and virtual network interface support ensure that even in I/O intensive virtual environments, network bottlenecks are a thing of the past. ReadyDATA 5200 also supports industry-standard file sharing protocols including iSCSI, CIFS, and NFS.

Advanced Data Management:

With data volume growing faster than ever before, the need to find more efficient ways to store and manage data is crucial. Unlike enterprise-class storage from traditional vendors, a full set of advanced data management technologies come standard with every ReadyDATA 5200.

A few of these advanced features include:

  • Thin provisioning, compression and de-duplication of both block (SAN) and file data (NAS)
  • Continuous data protection with unlimited snapshots
  • Block level replication over WAN managed from the cloud for disaster recovery

Specifications:

NETGEAR ReadyDATA Specifications
General
  • 2U / 12 bay form factor
  • Intel Xeon Quad-core 2.66.GHz processor
  • 16 GB ECC Memory
  • Two 10/100/1000 Ethernet ports with load balancing and failover
  • Two 10 Gigabit Ethernet ports with load balancing and failover (SFP+ ports)
  • 2 USB 2.0 ports
Software
  • NETGEAR ReadyDATA OS 1.0 using ZFS
  • Setup using easy browser-based dashboard
Scalability
  • Supports up to two EDA4000 – 4U/24-bay expansion chassis
RAID
  • Multiple volume support for RAID 0, 1, 5, 6, 10
  • Instant Provisioning / Instant expansion
  • Hot swappable disks
  • Hot spare disk support
  • SSD performance boost
Advanced Data Managed for Shares and LUNs
  • Unlimited Snapshots
  • Compression and De-duplication
  • Thick and Thin Provisioning
Network Protocols
  • CIFS/SMB for Windows
  • AFP 3.3 for Mac OS 9/X
  • NFS v2/v3 for Linux and UNIX
  • HTTP/S for web browsers
  • FTP/S
  • IPv6
  • SNMP
  • iSCSI target support for Windows, Mac and UNIX/Linux initiators
User Security and Data Access
  • Local users and Active Directory/Windows Domain support
  • Secure Sockets Layer (SSL)
  • CHAP authentication for iSCSI LUN
  • Shares
Network Services
  • DHCP or static IP address assignment
  • NTP server synchronization
  • LACP support for load balancing and failover
  • Virtual Network Interface Card (vNIC)
    1. VLAN Access
    2. IP Settings
    3. Performance throttling
System Management
  • Performance tuning options
  • Device health status
  • System configuration backup and restore
  • Email alerts and event logs
  • SNMP
Backup and DR Options
  • Hourly, Daily, Weekly scheduled snapshots (Data Protection)
  • Cloud managed Constant Replication (Disaster Recovery)
  • Client backup target using CIFS, NFS, FTP or iSCSI
  • Supported Backup applications from Acronis, Quest, StorageCraft, Symantec, VEEAM
Supported Web Browsers
  • Internet Explorer® 7.0+
  • Opera 9.5+; Safari 2.0+
  • Mozilla Firefox® 3.0+
Languages
  • Management UI: English, German, French, Chinese, Japanese
  • File name: Unicode
Electrical
  • PSU 2 x 700W server-rated AC power supply
  • Input: 100 – 240V AC, 50/60 Hz
Power Consumption
  • PSU 2x 700W server-rated AC power supply
  • Input: 100 – 240V AC, 50/60 Hz
Thermal
  • 3* 80 mm dual ball-bearing chassis cooling fans
  • Fan failure alert
  • High temperature email alert with auto-shutdown option
Operating Environment
  • 3* 80 mm dual ball-bearing chassis cooling fans
  • Fan failure alert
  • High temperature email alert with auto-shutdown option
Physical
  • Form factor: 2U rack-mount with 12 hot-swappable SATA drive bays
  • Dimensions: (h x w x d)–– 89 x 437 x 648 mm (3.5 x 17.2 x 25.5 in)
  • Weight: 32.8 kg (76 lb) with 12 disks
Warranty
  • NETGEAR 5-year Warranty*
  • Next business day onsite hardware replacement support, 3 years (included)**

*Basic technical support provided for 90 days from date of purchase.
**See http://onsite.netgear.com for coverage, availability and terms and conditions.

Video Presentation:


Documentation:

Download the NETGEAR ReadyDATA 5200 Series Datasheet (PDF).

Pricing Notes:

NETGEAR ReadyDATA
ReadyDATA 5200 (diskless)
#RD5200-100WWS
List Price: $10,000.00
Our Price: $6,999.00
NETGEAR ReadyDATA 5200 Series Expansion Chassis
24-bay, 4U expansion chassis for the ReadyDATA 5200, Supports SATA, SAS and SSD drives, Supports 1TB, 2TB and 3TB for up to 72TB of capacity, Each ReadyDATA 5200 can support up to two expansion chassis
ReadyDATA 4U expansion chassis with 6G SAS Cable
#EDA4000-100WWS
List Price: $5,000.00
Our Price: $3,699.00
ReadyRECOVER ShadowProtect Server Edition
#RRSERV01-10000S
List Price: $1,359.99
Our Price: $979.99
ReadyRECOVER ShadowProtect Virtual Server Edition
#RRVIRT01-10000S
List Price: $514.99
Our Price: $369.99
ReadyRECOVER ShadowProtect Desktop Edition
#RRDESK01-10000S
List Price: $129.99
Our Price: $94.99
ReadyRECOVER ShadowProtect SBS Edition
#RRSBS01-10000S
List Price: $699.99
Our Price: $499.99
ReadyRECOVER Granular Restore for Exchange
#RRGRE01-10000S
List Price: $2,499.99
Our Price: $1,799.99
For meeting the differing needs of specific applications, ReadyDATA 5200 users can mix-and match SATA, near-line SAS, SAS, and SSD drives within volumes to provide a stunning boost to performance and flexible capacity.
ReadyDATA 5200 Disk Pack with 6 x 2TB NL-SAS (LFF) HDD
#RD5D6LN02-100WWS
List Price: $1,761.66
Our Price: $1,167.00
ReadyDATA 5200 Disk Pack with 1 x 1TB NL-SAS (LFF) HDD
#RD5D1LN01-100WWS
List Price: $204.81
Our Price: $136.00
ReadyDATA 5200 Disk Pack with 1 x 300GB 15K SAS (LFF) HDD
#RD5D1LS01-100WWS
List Price: $361.95
Our Price: $242.00
ReadyDATA 5200 Disk Pack with 1 x 600GB 15K SAS (LFF) HDD
#RD5D1LS03-100WWS
List Price: $448.00
Our Price: $297.00
ReadyDATA 5200 Disk Pack with 1 x 50GB SLC (SFF) Write Cache
#RD5D1SC01-100WWS
List Price: $500.00
Our Price: $333.00
ReadyDATA 5200 Disk Pack with 1 x 100GB MLC SSD (SFF) Read Cache
#RD5D1SM01-100WWS
List Price: $491.97
Our Price: $325.00
ReadyDATA 5200 Disk Pack with 1 x 200GB MLC SSD (SFF) Read Cache
#RD5D1SM02-100WWS
List Price: $1,900.00
Our Price: $1,379.00
NETGEAR ProSupport Service - Learn More
OnCall 24x7 - 1 Year Subscription - Category 4
#PMB0314-10000S
Our Price: $725.00
OnCall 24x7 - 3 Year Subscription - Category 4
#PMB0334NA
Our Price: $1,450.00
OnCall 24x7 - 5 Year Subscription - Category 4
#PMB0354-10000S
Our Price: $2,417.00
