NETGEAR ReadyNAS 716 Series
Storage Made Easy. Industry-First Innovation Made Affordable.

NETGEAR ReadyNAS 716 Series

NETGEAR Products
NETGEAR ReadyNAS
ReadyNAS 716 6-bay desktop NAS 10GBaseT Diskless
#RN716X-100NES
List Price: $4,500.00
Special: $2,813.00

More pricing below, click here!

Overview:

Application data, virtual images, client files, email... the types of data central to running a successful business can seem endless. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, ReadyNAS allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication.

Every networked attached storage (NAS) device from NETGEAR runs on the revolutionary ReadyNAS operating system. This custom-built OS protects stored data not only with XRAID2 automatic expansion, but is the first desktop NAS for the SMB to feature the continuous data protection of unlimited snapshots along with real-time anti-virus and native encryption. Designed specifically for the unique needs of small business users, ReadyNAS devices utilize proprietary ReadyCLOUD technology for cloud-based discovery, provisioning and even ongoing management. In addition, these new devices are virtualization-ready with iSCSI support, thin provisioning capability and certification with VMware and Microsoft.

These days, your data is your world. With ReadyNAS, protecting and accessing that world has never been easier. ReadyNAS — Storage Made EASY.

Features & Benefits:

Key Business Features

Unlimited Snapshots Unlimited Snapshots: Unlimited data snapshot capability for on-box protection and flexible data recovery
XRAID2 XRAID2 & Instant Provisioning: Easily expand capacity and feel confident knowing that data is always protected
Cloud-managed Replication Cloud-managed Replication: Maintain data sets in multiple locations or ensure protection of data from remote or branch office locations
iSCSI iSCSI and Thin Provisioning: Powerful tools for a businesses taking advantage of virtual infrastructures
Anti-virus & Encryption Anti-virus & Encryption: Keep data protected from outside threats and safe from prying eyes
Modern GUI and ReadyCLOUD Management Modern GUI and ReadyCLOUD Management: Sleek, modern interface that puts the tools you need, where and when you need them

Key Business Solutions

File Server File Server: Unified storage platform for sharing files between Windows, Mac and Linux-based computers
Modern GUI Backup: RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore
Disaster Recovery Disaster Recovery: Cloud-managed replication for maintaining multiple sets of data and performing easy restores in case of disaster
Virtualization Virtualization: Thin provisioning, iSCSI support and certified with VMware and Microsoft

Solutions:

ReadyNAS Solutions

File Sharing

File Sharing
These days, running a successful business often depends on successful file sharing—application data, virtual images, client files, email, all the digital files that make your business go. With ReadyNAS, you finally have an advanced and easy-to-use solution for centralizing, securing, and sharing those critical assets. Faster processors mean more simultaneous users can access unified storage—across PC, Mac and Linux environments. ReadyDROP and full Dropbox integration make it easier than ever to sync your important files, photos or videos across all of your webconnected devices.

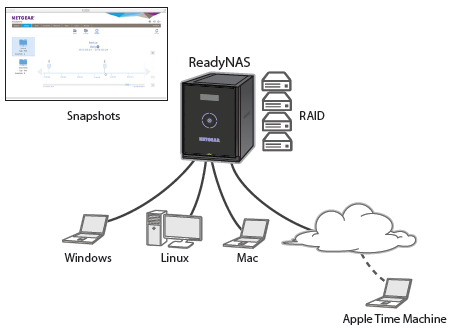

Backup

Backup
Unlimited snapshots give you complete control over the past, present, and future of your data. This enterprise-class feature copies any point of time in the file system, can be manually or automatically scheduled, and can restore any version with a simple click. Other data protection innovations for disk-based storage like Real Time Anti-Virus and Encryption bring new confidence to the integrity of your data and back-ups.

Disaster Recovery

Disaster Recovery
The custom-built ReadyNAS OS protects stored data with automatic RAID configuration, the continuous security of Unlimited Snapshots, and easy-to-manage Cloud Replication. By maintaining multiple copies of vital data through cloud replication, it makes it easy for you to move data offsite to protect against natural disasters and theft.

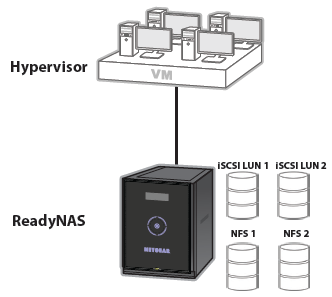

Virtualization

Virtualization
With Unlimited Snapshots, thin provisioning, and improved iSCSI support, ReadyNAS delivers a virtualization platform with nextgeneration features at an affordable price.

Model Comparison:

ReadyNAS Desktop Model Comparison - 300/500/700 Series
  ReadyNAS 312 ReadyNAS 314 ReadyNAS 316 ReadyNAS 516 ReadyNAS 716X
CPU Intel Atom 2.1GHz Dual Core Intel Atom 2.1GHz Dual Core Intel Atom 2.1GHz Dual Core Intel Core Ivy Bridge i3-3220 3.3GHz Dual Core Intel Xeon Ivy Bridge E3-1265Lv2 2.5GHz (3.5GHz Turbo) Quad Core
Memory 2GB 2GB 2GB 4GB ECC 16GB ECC
Drive Bays 2 4 6 6 6
Drive Types Supported SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5” SATA/SSD 2.5” or 3.5”
Hot Swappable Drives Yes Yes Yes Yes Yes
Tool-less 3.5” disk Installation Yes Yes Yes Yes Yes
eSATA Expansion Ports 1 2 (1 Shared USB/ eSATA port) 2 3 3
Total solution capacity internal /
with optional EDA500 unit(s)
8TB / 28TB 16TB / 56TB 24TB / 64TB 24TB / 84TB 24TB / 84TB
Gigabit LAN Ports 2 2 2 2 2
10Gbps LAN Ports 0 0 0 0 2 (10GBase-T)
USB Ports One (1) USB 2.0, Two (2) USB 3.0 One (1) USB 2.0, Two (2) USB 3.0 One (1) USB 2.0, Two (2) USB 3.0 One (1) USB 2.0, Two (2) USB 3.0 One (1) USB 2.0, Two (2) USB 3.0
HDMI Port 1 1 1 1 1
Power Supply 12V, 5A External 60W: input 100-240V AC, 50/60Hz 12V, 7A External 90W; input 100-240V AC, 50-60Hz Internal 200W; input 100-240V AC, 50-60Hz Internal 200W; input 100-240V AC, 50-60Hz Internal 200W; input 100-240V AC, 50-60Hz
BTU at Full power supply utilization 51W 69W 111W 153W 173W
Power consumption: Operation 35W 49W 55W 88W 96W
Power consumption: (Wake on LAN) 627mW 843mW 802mW 798mW 800mW
Power consumption: (Power Off) 266mW 472mW 338mW 417mW 420mW
Chassis Warranty* 5-year 5-year 5-year 5-year 5-year
2-Line LCD Display No Yes Yes Yes Yes
Touch Screen Navigation No Yes Yes Yes Yes
Fan (mm) 92 92 120 120 120
Dimensions DxWxH (mm) 220 x 101 x 142 223 x 134 x 205 288 x 192 x 259 288 x 192 x 259 288 x 192 x 259
Weight (kg) 2.22 3.97 7.53 7.97 7.97
MTBF @ 40C (hours) 56119 55694 57049 54852 54852
ProSUPPORT Service Packs Available
OnCall 24x7 1 year: PMB0312
3-year: PMB0332
5-year: PMB0352
1 year: PMB0312
3-year: PMB0332
5-year: PMB0352
1 year: PMB0312
3-year: PMB0332
5-year: PMB0352
1 year: PMB0313
3-year: PMB0333
5-year: PMB0353
1 year: PMB0313
3-year: PMB0333
5-year: PMB0353

Specifications:


Data Protection (Backup & Replication)

  • Unlimited block-based snapshots for continuous data protection
  • Restore Snapshots to any point in time
  • Restore Snapshot data from local admin GUI, ReadyCLOUD, or native Windows File Explorer
  • Scheduled and manual snapshots
  • Instantly clone snapshots
  • File Synchronization (rsync)
  • Encrypted Remote Replication
  • Cloud managed Remote Replication (ReadyNAS to ReadyNAS). No licenses required for ReadyNAS OS 6 devices.
  • AES 256-bit volume based encryption
  • X-RAID2 (automatic single volume online expansion)
  • Expand multiple RAID groups (vdev)
  • Single Disk, JBOD
  • RAID Levels: 0, 1, 5, 6, 10
  • RAID Global Hot Spare
  • eSATA Expansion
  • Backup to external storage (USB/eSATA)
  • Apple Time Machine support
  • Remote Apple Time Machine backup and restore (over ReadyNAS Remote)
  • ReadyNAS Vault Cloud backup (optional service)
  • ReadyDROP file synchronization (sync folder on Mac/Windows to a folder on ReadyNAS)
  • DropBox file synchronization (requires DropBox account)
  • Real-time Anti-Virus scanning using signature and heuristic algorithms. (No end-user licenses required) Protection for viruses, malware, worms, and Trojans.

Storage Area Networks (SAN), Virtualization

  • Unlimited iSCSI LUN Snapshot
  • Thin or thick provision LUNs
  • Multi-LUN per target
  • LUN mapping
  • LUN masking
  • SPC-3 Persistent Reservation (iSCSI)
  • MPIO (iSCSI)
  • MC/S (iSCSI)
  • Max # iSCSI Target: 256
  • Max # iSCSI LUN: 256
  • VMware vSphere 5
  • Citrix XenServer 6
  • Windows Server 2008 Hyper-V
  • Disk Defragment
  • Alerts (SMTP email, LCD, SNMP, syslog, local log)
  • Auto-shutdown (hard drive, fan, UPS)
  • Auto-restart on power recovery

Networking Protocols

  • TCP/IP
  • IPv4
  • Next-generation Internet Protocol (IPv6)
  • Static IP Address
  • Dynamic IP Address
  • Multiple IP Settings
  • DHCP Client
  • UPnP Discovery
  • Bonjour Discovery
  • Link Aggregation IEEE 802.3ad
  • Port Trunking (balanced round robin, active backup, balance xor, broadcast, 802.3ad link aggregation LACP, transmit load balancing, adaptive load balancing)
  • Hash Types IEEE 802.3ad LACP or XOR (Layer 2, Layer3, Layer 4)
  • Jumbo Frames
  • Virtual LAN (VLAN)
  • Secure Shell (SSH)
  • SNMP v2, v3
  • Network Time Protocol (NTP)

Media

  • ReadyDLNA (UPnP DLNA Media Server)
  • ReadyDLNA Streams to any compliant device including PS3/Xbox 360
  • ReadyDLNA mobile clients for remote media streaming (iOS, Android)
  • ReadyDLNA supported music formats (wav, wma, pcm, ogg, mp3, m4a, flac, aac)
  • ReadyDLNA supported photo formats (jpg, jpeg)
  • Windows Server 2008 Failover Clustering
  • Windows Server 2012

ReadyCLOUD (cloud access to ReadyNAS)

  • ReadyCLOUD portal based data access and management
  • Upgrade firmware remotely
  • VPN quality remote data transfer and management
  • Share data with friends & co-workers directly from portal

Remote Access Clients

  • ReadyNAS Remote clients for Apple Mac OS X, Microsoft Windows, Android, Apple iOS (Remote file access and management client)
  • VPN quality remote data transfer and management
  • Simple remote access through ReadyNAS Remote (no firewall or router configuration needed)
  • ReadyDROP file synchronization (sync folder on Mac/Windows to a folder on ReadyNAS)

File System & Transfer Protocols

  • ReadyNAS OS 6
  • Linux 3.x
  • Internal File System: BTRFS
  • External File System: EXT3, EXT4, NTFS, FAT32, HFS+
  • Copy-on-write file system
  • Data Compression
  • Microsoft Network (CIFS/SMB 3)
  • Apple OS X (AFP 3.3)
  • Linux/Unix (NFS v4)
  • Internet (HTTP)
  • Secure Internet (HTTPS)
  • File Transfer Protocol (FTP)
  • FTP over SSL / TLS (explicit)
  • FTP Passive mode with port range setup
  • FTP Bandwidth control
  • FTP Anonymous
  • FTP Transfer Log
  • Secure Shell (SSH)
  • SSH File Transfer Protocol (SFTP)
  • Web Authoring (WebDAV)
  • Storage Array Network (iSCSI)
  • File Synchronization (rsync)
  • Local web file manager
  • ReadyDLNA supported video formats (3gp, mp4, wmv, xvid, vob, ts, tivo, mts, mpeg, mpg, mp4, mov, mkv, m4v, m4p, m2t, m2ts, flv,flc, fla, divx, avi, asf)
  • ReadyDLNA supported playlist formats (pls, m3u)
  • ReadyNAS Surveillance (free trial, license required) supports over 70 brands and 1600 models of IP cameras
  • iTunes Server
  • iTunes supported audio formats (mp3, m4a, m4p, wav, aif)
  • iTunes supported video formats (m4v, mov, mp4)
  • iTunes supported playlist formats (m3u, wpl)
  • TiVo Archiving (varies by model and region)
  • Plex Media Server streams to DLNA and Plex clients (mobile, desktop, Google TV, Roku, Samsung & LG TVs)

Hardware

  • Floating Point CPU
  • Flash: 128MB for OS
  • Drive Bays: 6
  • Tool-less hard drive tray
  • Drive Types Supported: SATA/SSD 2.5” or 3.5”
  • Hot Swappable Drives
  • Three eSATA ports
  • One USB 2.0 & Two USB 3.0 ports
  • Total solution capacity: 84TB
  • Dual Gigabit Ethernet ports with link aggregation and failover
  • Dual 10Gb Ethernet (10GBase-T) ports with link aggregation and failover (RN716X only)
  • LEDs: Power, System, LAN
  • Power cord localized to country of sale

Users/Groups:

  • Max # Users: 8192
  • Max # User Groups: 8192
  • Max # Share Folder: 1024
  • Max # Concurrent Connections: 1024
  • Share Folder Level ACL Support
  • Advanced Folder Permissions with Subfolder ACL support for CIFS/SMB, AFP, FTP
  • Microsoft Active Directory (AD) Domain Controller Authentication
  • Local access list
  • ReadyCLOUD based ACL
  • Domain user login via CIFS/SMB, AFP, FTP

Management

  • ReadyCLOUD cloud-based discovery and management
  • RAIDar local discovery agent (Windows/Mac)
  • Save and restore system configuration (clone devices)
  • Local event log
  • Connection reporting (SMB)
  • Local Graphical User Interface (GUI) Languages: English, German, French, Japanese, Chinese (Traditional & Simplified), Russian, Swedish, Portuguese, Italian, Spanish, Polish, Czech, Dutch, Korean
  • ReadyNAS Add-on applications to add productivity, media, backup, surveillance and other applications
  • Unicode support
  • Volume Management
  • Thin provision Shares and LUNs
  • Instant Provisioning/Expansion with data protection
  • Restore to factory default
  • Supported Operating Systems (Microsoft Windows Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit), Microsoft Windows Server 2008 R2/2012, Apple OS X, Linux/Unix, Solaris, Apple iOS, Google Android)
  • Supported Web Browsers (Microsoft Internet Exploer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+)

System Monitoring

  • Device capacity, performance, resource and health monitoring
  • Bad block scan
  • Hard Drive S.M.A.R.T.
  • File System Check
  • Disk Scrubbing

Compliance

  • ENGR 10049 EST Environmental Stress Test Guideline
  • ENGR 10045 EVT Engineering Validation Test Guideline
  • ENGR 10048 CVT Compliance Validation Test Guideline
  • ENGR 10046 System Validation Test Guideline
  • ENGR 10023 HALT Accelerated Life Test Guideline
  • ENGR 10036 CDG Component Derating Guideline

Environment

  • Noise levels: <28dBA @ 30C (ReadyNAS 516/716), <24.9dBA @ 30C (all other units)
  • Operating Temperature: 0-40C
  • Operating Humidity: 5-95% relative humidity, non-condensing
  • Smart Fan
  • Scheduled Power on/off
  • UPS Support
  • Network UPS with SNMP Management
  • Wake on LAN
  • Schedule power on/off
  • Auto-power on (after shutdown)
  • AC Input Power Voltage 100V to 240V
  • Power Frequency: 50Hz to 60Hz, Single Phase
  • Certification: FCC Class B, CE Class B, RoHS, VCCI Class B
  • Warranty: 5 years

* The 5-Year Hardware Warranty only covers hardware, fans, and internal power supplies, and does not include external power supplies or software. Hardware modifications or customization void the warranty. The warranty is only valid for the original purchaser and cannot be transferred.

Documentation:

Download the NETGEAR ReadyNAS 300/500/700 Series Datasheet (PDF).
