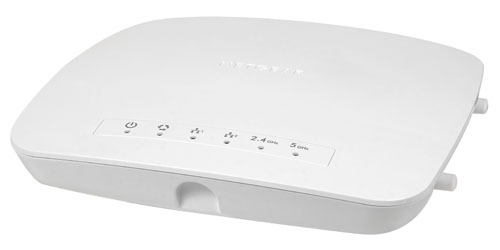

NETGEAR WAC740
ProSAFE Business 4x4 Dual Band 802.11ac Wave 2 Access Point


NETGEAR WAC740

NETGEAR Products
NETGEAR Business Wireless
WAC740 Premium 4 x 4 802.11ac Wave 2 Wireless Access Point
#WAC740-100NAS
List Price: $928.56
Our Price: $649.99

More pricing below, click here!

NETGEAR ProSafe

Overview:

Premium Controller Managed 802.11ac Wireless Access Point

NETGEAR Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point, purposely designed for enterprises requiring high density and superior performance. The NETGEAR Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point (AP) delivers high performance with maximum client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC740 is a controller managed Access Point with ease of centralized management with all NETGEAR wireless controllers from small (WC7500) to mid-size (WC7600) and large-size (WC9500) deployment. The WAC740 operates with Multi-User MIMO and can achieve speeds up to 600 Mbps for 2.4 GHz and 1.7 Gbps at 5 GHz. The WAC740 is Power over Ethernet enabled and comes with 2 Ethernet ports, including one Multi-Gig port that can handle up to 2.5 Gbps of throughput, enabling a single wire to connect to Multi-Gig capable switch for ease of wiring installation.

  • ProSAFE 802.11ac AP Wave 2 provides a theoretical connection rate of up to 2.6Gbps per radio—roughly double the rates offered by today’s high-end 802.11ac access points
  • Reliable wireless coverage with 4 streams of data based on 4x4 (Transmit and Receive) optimized internal antennas
  • Multi-user MIMO (MU-MIMO) increases efficiency and capacity – enabling clients to utilize the RF spectrum much more efficiently by allowing multiple-AP-to client transmissions, beamforming, wider bandwidth, and improved encoding
  • AirQual feature enables spectrum analysis and interference identification
  • Centrally managed by ProSAFE Wireless Controllers
  • 2.5GBASE-T Multi-Gigabit support eliminates bottlenecks associated with standard Gigabit Ethernet (NBASE-T switch required to obtain speeds higher than 1Gbps w/ a single port)

Features:

  • MU-MIMO maximizes the use of wireless medium for delivery of high throughput content
  • Compact and elegant design stylishly blends into the environment
  • Concurrent operation in 2.4GHz (600Mbps) and 5GHz (1.7Gbps) for maximum wireless throughput
  • Backward compatibility with 802.11a, 802.11b, 802.11g, and 802.11n network devices
  • Integrated Power over Ethernet (802.3af and 802.3at) lowers deployment costs
  • Controller managed by WC7500, WC7600 and WC9500 allowing centralized management up to 600 Access Points in a cluster of controllers.
  • Business-class security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
  • Easy mounting mechanism for quick wall or ceiling installation
  • Internal antennas factory-optimized for maximum RF performance
  • Antenna take-offs enable optional accessory antenna attachment for 2.4GHz and/or 5GHz operations
  • AirQual monitors Wi-Fi channel utilization on the network, identify sources of interference. Log alerts on channel quality drop or overload

Easy to Configure

  • Simple setup in minutes with wireless controllers (WC7500/WC7600/WC9500)
  • Centralized configuration and monitoring with complete visibility

High performance and superior coverage

  • Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
  • Maximum performance with multi-gigabit throughput (up to 2.3 Gbps)

Maximize capacity with Multi-user MIMO support

  • Enable concurrent wireless transmit and receive with multiple clients
  • Improves coverage for multiple users in dense environment

Simple and cost effective for installation

  • Power over Ethernet (PoE) for flexibility of deployment
  • 2.5 Multi-Gigabit Ethernet port with single cable installation with no compromise

Specifications:

NETGEAR WAC740 Specifications
Standards
  • IEEE 802.11ac Wave 2 standard
  • WMM Wireless Multimedia Prioritization
  • WDS Wireless Distribution System
  • Power over Ethernet (PoE) IEEE 802.3af/802.3at
Physical Specifications
  • Physical Dimensions (W x D x H): 197 x 197 x 40mm (7.76 x 7.76 x 1.57in)
  • Weight: 726g (1.6lb)
Physical Interfaces
  • One (1) 10/100/1000/2500BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af or 802.3at Power over Ethernet (PoE) support
  • One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X)
  • Static link aggregation (LAG) support for redundancy and aggregate throughput exceeding 1Gbps
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • One (1) console port with RJ45 Interface
  • Four (4) reverse SMA antenna connectors for dual band 2.4 and 5GHz external antennas (not included)
  • Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz
Security
  • WiFi Protected Access (WPA/WPA2), 802.11i
  • Multiple VPN pass-through support
  • MAC address filtering with access control
  • 802.1x RADIUS support with EAP TLS, TTLS, PEAP
  • Rogue AP detection
  • Block SSID Broadcast
  • Secure SSH Telnet
  • Secure Socket Layer (SSL)
  • Remote management login
  • Peer-to-peer blocking so users may not access another user’s PC
Management Controller managed by WC7500/ WC7600/WC9500
Advanced Wireless Features
  • Bridge mode: Point-to-point wireless WDS mode
  • Bridge mode: Point-to-multipoint wireless WDS mode
  • Repeater mode
  • Adjustable Transmit Power Control (TPC)
Package Contents
  • ProSAFE Business Dual Band Wireless- AC Access Point (WAC730)
  • Ethernet cable
  • Ceiling and wall mount kit
  • Installation guide
Accessories
  • Power Adapters with plug localized to country of sales
  • PAV12V-100AUS (for Australia)
  • PAV12V-100EUS (for Europe, Outside of UK)
  • PAV12V-100NAS (for North America)
  • PAV12V-100PRS (for China)
  • PAV12V-100UKS (for UK)
NETGEAR Warranty
  • his product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

Diagram:

Target Applications

Target Applications

Documentation:

Download the NETGEAR WAC730 Datasheet (PDF).
