NETGEAR WN370
ProSafe Wall Mount Access Point

NETGEAR WN370

NETGEAR Products
NETGEAR Business Wireless

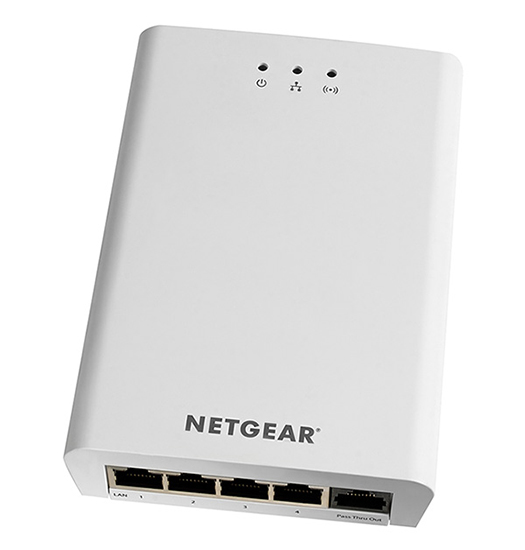

ProSAFE WN370 Wall Mount Access Point
#WN370-10000S
List Price: $219.00
Our Price: $149.00

More pricing below, click here!

NETGEAR ProSafe

Overview:

Small form factor access point for in-room wired and wireless access

The WN370 Wall Mount Access Point is designed specifically for in-room coverage for wired and wireless access for small and medium hotels and education dormitories. The WN370 has a sleek, elegant, and compact design that allows the AP to be deployed in an inconspicuous manner and can be installed quickly by non-technical personnel. The WN370 is powered with PoE with 1Gbps uplink and 4 (100 Mbps) Ethernet data ports, plus additional voice port for connectivity to digital phones. The WN370 is centrally managed by an enterprise class wireless controller with automatic RF and power tuning with guest captive portal and comprehensive wireless security.

  • Integrated 2.4 GHz 802.11n Wireless Access Points and 4 port Ethernet wall switch
  • High performance with throughput up to 300 Mbps
  • Reliable RF converge with 802.11n 2x2 MIMO transmit and receive mode
  • Sleek, elegant, and compact design for inconspicuous AP placement
  • Powered by 802.11af Power over Ethernet (PoE) for flexible deployment and reduces cabling runs.
  • Support multiple (8) BSSIDs with VLAN association for additional security
  • Comprehensive Wireless Security with WEP, WPA-PSK, WPA-TKIP, WPA2 AES
  • Advanced Enterprise Security with 802.1X support for RADIUS and Active Directory
  • Customizable captive portal and guess access
  • Easily mount into standard US and EU single gang wall jack
  • Gigabit RJ-45 for uplink Ethernet port
  • Additional RJ-45 pass-through connection for voice port for connectivity of digital phones

Features:

Small form factor and inconspicuous appearance

The aesthetically pleasing design of the WN370 allows the access point to blend nicely in the hotel room and school dormitories. WN370 provides wired access directly to the users, where the traditional form factor Access Points are normally installed on the ceiling, away from the access of the users that need wired connectivity. The WN370 is installed with easy attachment to the junction box and appears with a nice decorative appearance.

Fast installation and PoE powered

The WN370 can be installed easily and less than 5 minutes. The WN370 ships with mounting brackets and fits into both US and EU standard electric junction boxes. Only 4 screws are needed to reliably install the WN370 to the wall with low protrusion. The WN370 is powered via Power over Ethernet on the 1 Gbps uplink. Simply connect a Ethernet cable between the WN370 and a PoE enabled switch and the WN370 is up and running. There is no separate power cord needed.

Flexible and easy deployment

WN370 can be installed easily and does not need sophisticated skills of engineers. WN370s are generally deployed in room, especially effective in areas where deploying the access points in traditional locations (such as ceiling mounted or hallways of dormitories and hotels) are not feasible. Because the WN370 is designed to provide coverage in a specific room, where the RF containment is more well defined, no extensive site survey is required. Finally, because the WN370 comes with four Ethernet ports, users can plug in multiple wired devices without the requirement to pull additional cables from the access point to the wiring closet, thereby saving both time and money to meet the requirements of multiple Ethernet ports per room.

Centrally managed with complete enterprise features

The WN370 is centrally managed by the WC7600 Wireless Controller. All of the configurations can be centrally configured and stored at the WC7600. Once the WN370 is discovered by the WC7600, it will receive the latest firmware and the updated configuration provided by the WC7600. The WC7600 will automatically and dynamically adjust the RF frequency and the output power of the WN370 to ensure optimal frequency reuse and the best power setting to provide ubiquitous coverage of the intended location. Comprehensive site survey is generally not needed, thereby making the installation and wireless design of WN370 as simple as it gets.

Specifications:

NETGEAR WN370 Specifications
Physical Characteristics
Power
  • Power over Ethernet
Physical Dimensions
  • Dimensions (L x W x H): 135.2 x 93.1 x 25.9 mm (5.46 x 3.80 x 1.16 in)
Weight
  • 0.218 kg, 0.481 lb
Mounting
  • Wall mounting to Electric Junction Box
Case
  • Support US and UN electric junction boxes
  • Designed to fit in standard US style electrical junction box of NEMA-WD6 and standard EU or china style electrical junction box of BS4662
Interfaces and Indicators
Physical Interfaces
  • Uplink: 1 x 10/100/1000 Mbps (PoE) + 1 10/100 voice port
  • Downlink: 4 x 10/100Mbps (data) + 1 10/100 Mbps (voice passthrough)
PoE
  • 802.3af Power over Ethernet (PoE)
LEDs
  • 3: Power, Status, WLAN
Environmental Conditions
Operating Temperature
  • 32° to 113°F (0° to 45°C)
Storage Temperature
  • -4° to 158°F (-20° to 70°C)
Operating Relative Humidity
  • 10% to 90%
Storage Humidity
  • 5% to 95%
MTBF
  • @ 25°C > 375,000 hours
  • @ 50°C >125,000 hours
Typical Power Consumption
  • 5.1 Watts
RF Characteristics
Standards
  • IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
Frequency Band
  • 2.4GHz
802.11n Transmit x Receive
  • 2x2
Maximum Theoretical Throughput
  • 300 Mbps
Antenna Type
  • Internal
Antenna Gain
  • 3 dbi
Maximum Transmit Power
  • 21 dBm @ 802.11b (1Mbps)
  • 21 dBm @ 802.11g (6 Mbps)
  • 21 dBm @ 802.11n (MCS0)
Minimum RX Sensitivity
  • Up to -92 dBm
Network Management
Deployment options - controller managed
  • Web UI
  • CLI
  • Support with WC7600
SNMP
  • SNMP v1, v2 with 802.11 standard and proprietary MIBs
Features
Wireless Security
  • WEP, WPA, WPA2, 802.1x
Advances Wireless Features
  • IEEE 802.1x Radius (EAP TLS, TTLS, PEAP)
  • Wireless access control to identify authorized wireless devices
  • MAC ACL
  • Rogue AP detection
  • Heat Map
  • Guest Access and Captivel Portal
  • Auto Healing
  • Auto RF adjustments
  • Auto AP power adjustments
  • VLAN
  • 802.11 WMM (Wireless Multimedia mode for QoS)
Multiple BSSID
  • up to 8
Package Contents
  • ProSAFE Wireless-N Access Point
  • Wall-mount kit
  • Installation guide
  • Warranty/support information card
Safety Certification
  • UL/cUL, CE (EN60950-1)
Countries Certification (minimum set)
  • FCC, IC, CE, EN55022/24, EN301489, EN301489-17, EN30328, EN60950,
  • C-Tick, A-Tick, SRRC
Optional Support
  • PMB0351: 5 years OnCall 24x7
  • PMB0331: 3 years OnCall 24x7
  • PMB0311: 1 year OnCall 24x7

Deployment:

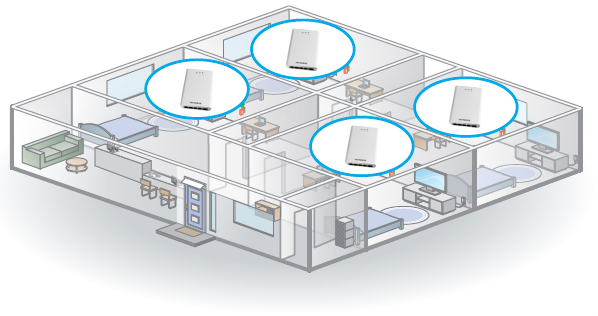

Hotel Deployment

Hotel Deployment

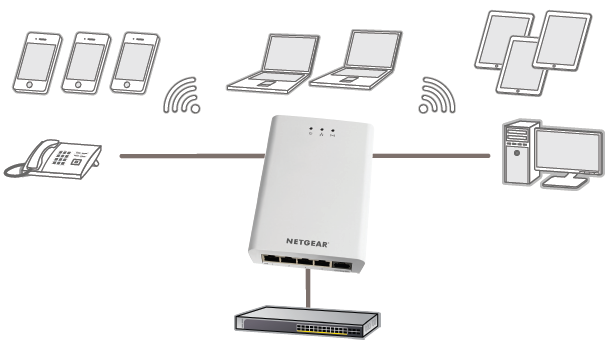

WN370 Deployment

Documentation:

Download the NETGEAR WN370 Datasheet (PDF).
