NETGEAR WNDAP620
ProSafe Dual Band Premium Wireless-N Access Point

NETGEAR WNDAP360

NETGEAR Products
NETGEAR Business Wireless
ProSafe WNDAP620 Dual Band Premium Wireless-N Access Point
#WNDAP620-100NAS
List Price: $325.00
Our Price: $228.00

More pricing below, click here!

NETGEAR ProSafe

Overview:

Advanced Speed and Range with Comprehensive Internet Security

  • 3 x 3 multiple-input, multiple-output (MIMO) with three spatial streams
  • Dual band selectable in 2.4 or 5 GHz radio band for maximum w ireless throughput
  • Stylish and elegant design with easy mounting options (e.g. ceiling, wall and desktop)
  • Backward compatibility with 802.11a, 802.11g and 802.11b network devices
  • Integrated Power over Ethernet (IEEE® 802.3af and 802.3at PoE) lowers deployment costs
  • Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS)
  • Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
  • Internal antennas factory-optimized for maximum RF performance
  • Advanced Security with Wireless Intrusion Detection (WIDS) and Wireless Intrusion Prevention (WIPS) support
  • 802.11n Beamforming to improve range and maximizes data rates
  • Device-based QoS to provide differentiated service level agreement to each user and device type

Specifications:

ProSafe Wireless Access Point Comparison
Features WNDAP660 WNDAP620 WNAP360 WNAP320
Frequency 2.4 GHz and 5 Ghz 2.4 GHz and 5.0 GHz 2.4 GHz and 5.0 GHz 2.4 GHz
Transmit x Receive Radio Chains 3 x 3 3 x 3 2 x 2 2 x 2
Maximum theoretical throughput 450 Mbps 450 Mbps 300 Mbps 300 Mbps
Power over Ethernet (PoE) IEEE 802.3af
PoE power consumption 10.51 Watts 10.51 Watts 10.75 Watts 5.8 Watts
Wireless Distribution System (WDS)
Repeater
Bridge point-to-point/multi-point
Simultaneous bridge & wireless client association
Separate bridge and access point
Client Mode
SNMP v1, v2c v1, v2c v1, v2c v1, v2c
Antenna Two (2) Internal 5 dBi
Three (3) reverse SMA connectors
Two (2) Internal 5 dBi
Three (3) reverse SMA connectors
Two (2) Internal 5 dBi
Two (2) reverse SMA connectors
Two (2) Internal 5 dBi
Two (2) reverse SMA connectors
User support Up to 128 users Up to 128 users Up to 50 users Up to 64 users
Security
Wi-Fi Protected Access (WPA/WPA2), 802.11i
Multiple VPN pass-through support
MAC address filtering with access control lists–up to 256 users
802.1x RADIUS support with EAP TLS, TTLS, PEAP
Rogue AP detection
Block SSID Broadcast
Secure SSH Telnet
Secure Socket Layer (SSL)
Remote management login
Peer-to-peer blocking so users may not access another user's PC
MBSSID/VLAN Support 16/17 16/17 16/17 8/9
WPA Support (WPA2 – Enterprise, 802.11i)
User Interface
Browser-based Interface
Accepts accessory antennas
Easy ceiling mounting/wall mounting
WIDS
WIPS
Bandwidth Management
LLDP
Bandsteering

NETGEAR's ProSafe line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser , ProSafe products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks.

Standards:

  • IEEE 802.11a 5GHz
  • IEEE 802.11g, IEEE 802.11b, 2.4GHz
  • IEEE 802.11n standard, 2.4GHz and 5GHz
  • WMM - Wireless MultiMedia prioritization
  • WDS- Wireless Distribution System
  • er over Ethernet (PoE) IEEE 802.3af and 802.3at

Physical Specifications:

  • Physical Dimensions (W x D x H): 253.75 x 253.76 x 54.76 mm (10.0 x 10.0 x 2.16 in)
  • Weight: 1.5 kg (3.31 lb)

Physical Interfaces:

  • One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
  • Power adapter: 12 VDC, 1.5A; plug is localized to country of sale
  • One (1) console port with RJ45 Interface
  • Three (3) reverse SMA antenna connectors
  • Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz

Security:

  • Wi-Fi Protected Access (WPA, WPA2)
  • Wired Equivalent Privacy (WEP) 64-bit, 128-bit, and 152-bit encryption
  • IEEE802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
  • Wireless access control to identify authorized wireless network devices
  • MAC address authentication
  • VPN pass-through support
  • Secure SSH Telnet
  • Security Socket Layer (SSL) remote management login

Network Management:

  • Remote configuration and management through Web browser, SNMP or Telnet with command line interface (CLI)
  • SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary confi guration MIB

Advanced Wireless Features:

  • Wireless Distribution System (WDS)
  • Bridge mode: Point-to-point wireless WDS mode
  • Bridge mode: Point-to-multipoint wireless WDS mode
  • Repeater mode
  • Adjustable Transmit Power Control (TPC) from 100 mW down to 0 mW

System Requirements:

  • 2.4GHz/5GHz 802.11n specifi cation or 2.4GHz 802.11b/g wireless adapter or 5GHz 802.11a wireless adapter
  • Microsoft® Windows® Vista™, XP, 2000, 98, Me, Mac® OS, UNIX®, or Linux®
  • Internet Explorer® 6.0 or Mozilla Firefox 1.5
  • We recommend using this product with RangeMax Dual Band Wireless-N USB Adapter (WNDA3100)

Package Contents:

  • ProSafe® Premium Dual Band Wireless-N Access Point (WNDAP620)
  • Ethernet cable
  • Wall-mount kit
  • Installation guide
  • Resource CD
  • 12V, 1A power supply
  • Warranty/support information card Warranty
  • Access Point: ProSafe Lifetime

Warranty:

  • Power Supply: 3-year Warranty
  • Access Point: ProSafe Lifetime Warranty

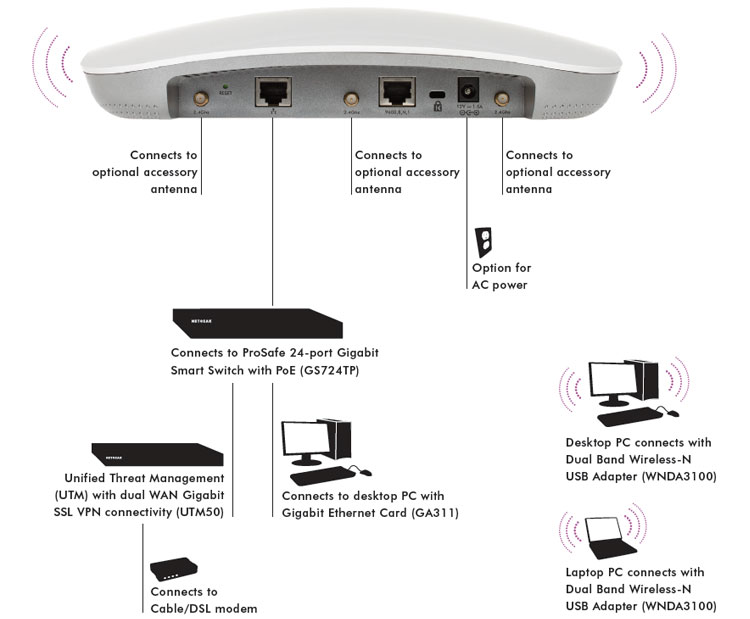

Diagram:

WNDAP620 Diagram

Documentation:

Download the NETGEAR WNDAP620 Data Sheet (PDF).
