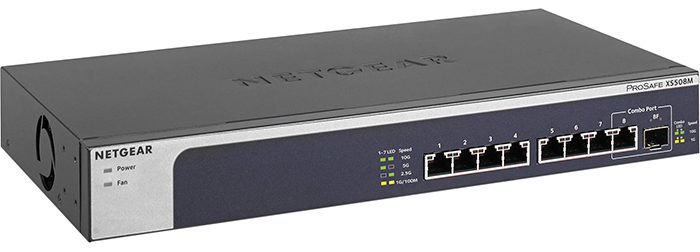

NETGEAR XS508M
8-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch


NETGEAR XS508M

NETGEAR Products
NETGEAR Unmanaged Switches
USA: FREE Ground ShippingNETGEAR 8-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch
#XS508M-100NAS
List Price: $935.49
Our Price: $609.44
USA: FREE Ground ShippingSpecial Promo!NETGEAR 8-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch

*Special Pricing, ends June 30, 2018!

#XS508M-100NAS-PROMO
List Price: $935.49
Special Price: $600.00

More pricing below, click here!

Overview:

Unlock the Potential of your 10G/Multi-Gig devices

The XS505M and XS508M come with Copper Ethernet ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity.

Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS505M gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.

Highlights

  • Multi-Speed Technology
    Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10 Gigabit, automatically
  • Plug and Play
    Simple set up with no software or configuration needed
  • Flexible Mounting
    Rackmount or Desktop Switches
  • SFP+ Port
    One SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity – Ideal for high-speed uplink connectivity to your core network
  • High Quality and Reliable Performance
    Durable metal case and long product life (shown by MTBF numbers)
  • Whisper Quiet
    Whisper Quiet switch with an active fan
  • Industry leading warranty
    LIFETIME 24/7 Technical Support and LIFETIME Hardware Warranty*

Cables and Speed

The following table describes the network cables that you can use for the switch connections and the speeds that these cables can support, up to 100 meters (328 feet).

Speed Cable Type
100Mbps Category 5 (Cat 5) or higher rated
1Gbps, 2.5Gbps, or 5Gbps Category 5e (Cat 5e) or higher rated
10Gbps Category 6A (Cat 6A) or higher rated

Note: For speeds of 10 Gbps, if the cable length is shorter than 45 meters (148 feet), you can use a Cat 5e cable.

Why the NETGEAR 10-Gig/Multi-Gig Switches are ideal for SMB

  1. Plug-and-play, automatic connectivity to your router or modem of 4 additional wired connections. No need for an IT expert!
  2. Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
  3. Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
  4. ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
  5. Energy efficient switches that automatically adjust power consumption according to the link status and cable length.

Specifications:

Technical Specifications
Models: XS505M XS508M
Product Specifications
100M/1G/2.5G/5G/10G RJ-45 copper ports 4 7
10G SFP+ ports 1 1 x 10G/1G SFP+ and Copper (combo)
Form Factor Desktop/Rackmount Desktop/Rackmount
Performance Specifications
Packet buffer memory (Dynamically shared across only used ports) 128KB 128KB
Forwarding modes Store-and-forward Store-and-forward
Bandwidth 100Gbps 160Gbps
MAC Address database size (48-bit MAC addresses) 2K 2K
Packet forwarding rate (64 byte packet size) (Mpps) 10Gbps: 14,880,952fps
5Gbps: 7,440,476fps
2500Mbps: 3,720,238fps
1000Mbps: 1,488,095fps
100Mbps: 148,810fps
10Gbps: 14,880,952fps
5Gbps: 7,440,476fps
2500Mbps: 3,720,238fps
1000Mbps: 1,488,095fps
100Mbps: 148,810fps
Speed / Latency 100Mbps: <6µs
1Gbps: <4µs
2.5Gbps: TBD
5Gbps: TBD
10Gbps : TBD
100Mbps: <6µs
1Gbps: <4µs
2.5Gbps: TBD
5Gbps: TBD
10Gbps : TBD
Jumbo frame support Up to 9K packet size Up to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 22.5 22.5
Mean Time Between Failures (MTBF) @ 25°C 1093237 hours 1145157 hours
Power/Energy Efficency
802.1p-based QoS/CoS Supported Yes Yes
Auto Power Down Yes Yes
Short Cable Detection/Power Saving Yes Yes
Quality of Service (QoS)
IEEE 802.3az (Energy Efficient Ethernet) Yes Yes
Honors DSCP (DiffServ) Tags Yes Yes
Weighted Round Robin (WRR) Yes Yes
Priority Queues 8 8
IEEE Network Protocols
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1p Class of Service
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3an 10GBASE-T
  • IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
  • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
  • IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
LEDs
Per port Speed, Link, Activity Speed, Link, Activity
Per device Power and Fan Power and Fan
Physical Specifications
Models: XS505M XS508M
Dimensions 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in) 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight 1.38kg 1.49kg
Power Consumption
Power Supply Fixed internal PSU, 100-240VAC, 50-60Hz, 1A max Power cord localized to country of sale Fixed internal PSU, 100-240VAC, 50-60Hz, 1.5A max Power cord localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts) 22.5W 39W
Min power (link-down standby) (Watts) 12.25 21.31
Heat Dissipation (max and min) (BTU/hr) 85.3/46.4 147.86/80.8
Fan(s) x1 x1
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • 47 CFR FCC Part 15, SubpartB, ClassB ICES-003:2016 Issue 6, ClassB ANSI C63.4:2014
  • EN 55022:2010 + AC:2011, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013
  • AS/NZS CISPR 22:2009 + A1:2010, Class B
  • VCCI V-3/2015.04, Class A V-4/2012.4
  • Russia EAC mark
  • Korea KC mark
  • CNS 13438
Electromagnetic Compliance (Class A or B) Class B
Safety Certifications
Certifications
  • CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
  • UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
  • EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
  • AS/NZS 60950.1:2015
  • Russia EAC mark
Warranty and Support
Warranty
  • ProSAFE Limited Lifetime Warranty
  • Lifetime 24x7 Online Technical Support*
  • Lifetime Next-Business-Day (NBD) Replacement
ProSUPPORT OnCall 24x7, Service Packs**
  • Category 1:
    • PMB0311 (1 yr.)
    • PMB0331 (3 yrs.)
    • PMB0351 (5 yrs.)
Package Content
All Models
  • XS505M or XS508M 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch
  • Power cord (localized to country of sale)
  • Rack-mounting kit
  • Quick install guide
Easy-Mount additional options (GS418TPP)
  • Mount for attachment to a wall, or rectangular pole
  • Rubber belts
  • Velcro straps
  • Power cord locker

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Diagram:

XS505M/XS508M in a Business Environment

XS505M/XS508M in a Business Environment
