NETGEAR BR200
Insight Managed Business Router
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
All your network & security under one umbrella including support of VLAN, VPN and firewall
Introducing new Insight Managed Business Router, a high performance, affordable security router for home offices, small businesses that can be easily managed and monitored with the Insight Cloud management solution.
This Business Router features remote configuration and monitoring, a firewall, open VPN, IPsec site-2-site connection and VLAN capabilities which enables businesses to fully monitor and protect their networks rapidly and cost-effectively. It is the newest addition to the Insight family, allowing management of Insight managed switches, Wireless Access points, network storage and business router under a centralized interface, from anywhere and any screen.
Remotely manage your Business Router with NETGEAR Insight, including your VLAN and IPsec configurations, get status on your devices and update device firmware automatically. The BR200 Business Router also includes a firewall to protect your business from any intrusion.
Highlights
Intelligent Router
Including all the routing and network segmentation features that a small business router must have, NETGEAR Insight Managed Business Router will be the backbone of any modern small business. Gigabit LAN/WAN ports keep your data moving at top speed. With Network Address Translation (NAT) routing and classical routing, all the users in your office can access your broadband connection at the same time. VLAN and inter-VLAN routing are just a few examples of resourcefulness of Insight Managed Business Router.
Remote Management
NETGEAR Insight platform offers visibility and access to the routing features from a single pane of glass. Register, Configure, manage and monitor your router with just a few taps from your Insight mobile App or web portal.
Business Grade
The rugged metal unit houses advanced, high-quality electronics, and is backed by the industry’s best-in-class 2-Year Hardware Warranty, 90 Day Free Technical Support and 2-Year Next Business Day Replacement.
Support
NETGEAR provides Professional Configuration and Setup Support to assist initial setup if needed, and OnCall 24x7 Support for ongoing technical onsultation.
Features:
NETGEAR Insight
Remotely monitor your network from a single pane of glass, even across multiple sites.
VPN
Create remote client-to-site VPN connections using Open VPN, and site-2-site VPN connections with IPsec configuration.
Firewall
A firewall provides instant protection against intrusion.
WAN/LAN Ports
Comes with 1 WAN port for internet and 4 LAN ports for wired connectivity.
Routing
Full routing capabilities with DHCP, NAT, PTTP, and L2TP.
VLAN
Enjoy InterVLAN routing and VLAN in VLAN support.
Connection Diagram:

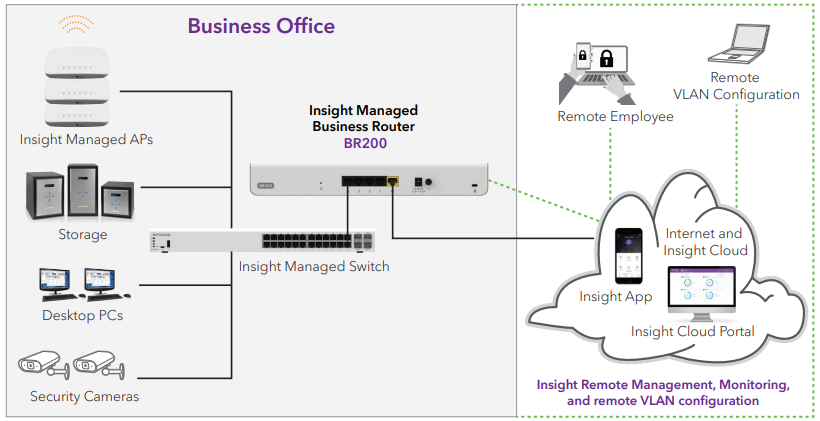

Remote Users

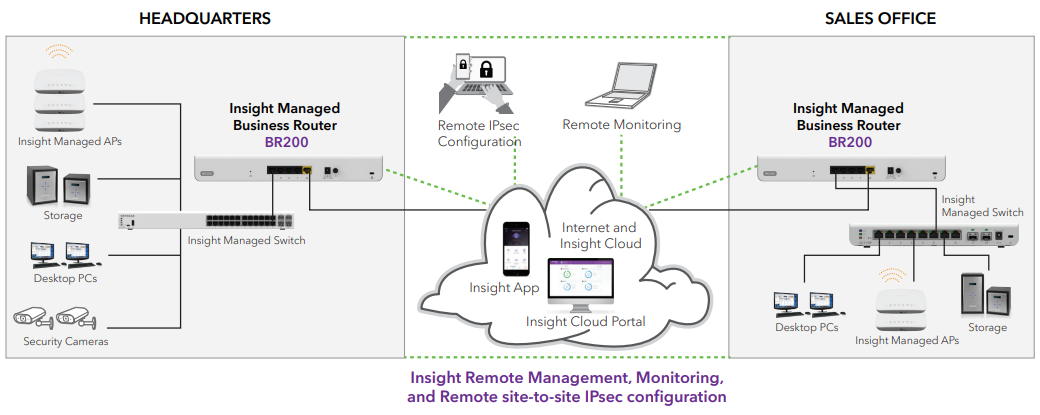

Site-to-Site VPN
Specifications:
| BR200 Specifications | |
|---|---|
| Connectivity | |
| Gigabit Ports WAN/LAN | 1/4 |
| DMZ Interfaces (Configurable) | 1 |
| Performance | |
| LAN-to-WAN Throughput | 924Mbps |
| Maximum Number of VLANs | 256 |
| Security | |
| Firewall Functions | Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, WAN/LAN Ping Response Control |
| Content Filtering (HTTP Only | Web Keyword Blocking, Trusted Domains |
| VoIP SIP ALG | Yes |
| Networking | |
| ISP Address Assignment | DHCP, Static IP Assignment, PPPoE, PPTP |
| NAT Modes | 1-1, NAT |
| Routing | Static, Dynamic, RIPv1, RIPv2 |
| DHCP | DHCP Server (limit is 4), DHCP Relay, DNS Proxy |
| DDNS | NETGEAR, No-IP.com, Dyn.com |
| VLANs | 802.1Q |
| Essential Networking Features | Port Range Forwarding, Port Triggering, DNS proxy, MAC Address Cloning/ spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports, L3 Quality of Service (QoS) , LAN-to-WAN and WAN-to-LAN (ToS), Bandwidth Profiling |
| VPN | |
| IPsec Encryption/Authentication | 56-bit DES, 168-bit 3DES, AES (128, 192, 256 bit)/SHA-1, MD5 |
| Key Exchange | IKE, IKEv1, IKEv2, Manual Key, Pre-shared Key, PKI, X.509v3 |
| Access Modes | Insight remote access |
| SSL Version Support | SSLv3, TLS1.0 |
| SSL Encryption Support | DES, 3DES, ARC4, AES (ECB, CBC, XCBC, CNTR)128, 256 bit |
| SSL Message Integrity | MD5, SHA-1, MAC-MD5/SHA-1, HMAC-MD5/SHA-1 |
| SSL Certificate Support | RSA, Diffie-Hellman, Self |
| L2TP Server | Yes |
| PPTP Server | Yes |
| Management | |
| Management Options | Insight Cloud |
| Logging | Accepted Packets, Dropped Packets, System, Source MAC filter, Session Limit, Bandwidth Limit, IPsec VPN |
| Log Delivery | Insight logging |
| Diagnostics | Ping, DNS Lookup, Trace Route |
| Maintenance | Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades via Web Browser, Display Statistics |
| Hardware | |
| Processor | Dual-core 1.7GHz CPU with additional dual-core Network Switching Subsystem (NSS) processors |
| Flash Memory/RAM | 128MB/1GB |
| Major Regulatory Compliance | Environment: RoHS Safety: CE/LVD, cUL EMI: FCC Part 15 Class B, CE mark, C-Tick Class B, VCCI |
| Temperatures | Operating Temperature: 0° - 45°C (32°-113° F) Storage Temperature: -20° - 70° C (-4° - 158° F) |
| Humidity | Operating humidity 90% maximum relative humidity, non-condensing Storage humidity 95% maximum relative humidity, non-condensing |
| Electrical Specifications | Power adapter input localized to regions Output: DC 12V/1.5A |
| Dimensions (W x D x H) | 12.36 x 7.38 x 1.72 inch (31.4 x 18.75 x 4.365 cm) |
| Weight | 1.55 kg / 3.41 lb |
| System Requirements | Cable or DSL Broadband Modem, Internet Service, Windows Client Device, Internet Explorer/Firefox/Chrome/Safari Web Browser |
| Warranty and Support | |
| Hardware Warranty* | 2 years |
| Next Business Day Replacement | 2-year |
| Technical support (online, phone) * | 90 days free from date of purchase |
| Professional Configuration and Setup Support (remote) | PSB0304-10000S |
| Package Contents | |
| WAX204 | Insight Managed Business Router Ethernet cable Installation guide Warranty card |
*
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

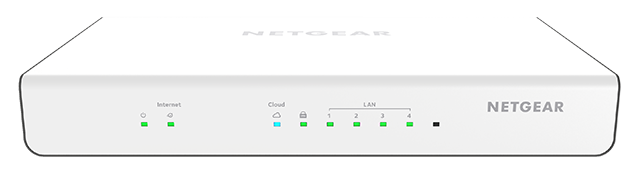

Views:
Documentation:
Download the NETGEAR BR200 Datasheet (PDF).
