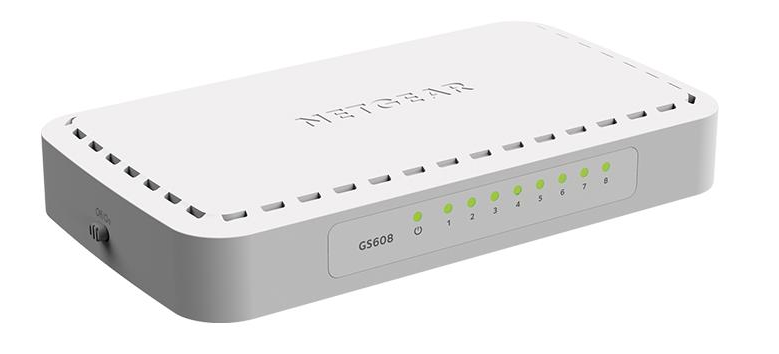

NETGEAR GS608
8-Port Gigabit Ethernet Home/Office Switch
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Overview:
Ideal for Home/Small Office Networks
The NETGEAR Home/Office Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small/home offices
- Gigabit Ethernet switches connect multiple devices, delivering speeds up to 10x faster than Fast Ethernet
- Plug-and-play technology
- Single color LEDs monitor link and activity
- Supports Fast and Gigabit Ethernet devices with automatic speed-sensing and AutoUplink™ technology
- Supports Windows® and Macintosh® platforms
- With its distinctive reflective surface, the GS605 and GS608 blend seamlessly into any environment
- Instant Internet connectivity
- Stylish design
- Reliable performance
- Wall mountable
Specifications:
| Technical Specifications | |||||
|---|---|---|---|---|---|
| Models: | GS605 | GS608 | |||
| 10/100/1000 Mbps Ports | 5 | 8 | |||
| Enclosure | Plastic | Plastic | |||
| Connector Type | Plastic | Plastic | |||
| Performance | |||||
| Bandwidth | 10 Gbps | 16 Gbps | |||
| Max MAC entries | 8K | 4K | |||
| Buffer Memory | 1Mbit | 1.5Mbit | |||
| Jumbo Frames | 9216 bytes | 9216 bytes | |||
| Energy Efficiency | |||||
| Energy Efficient Ethernet (IEEE 802.3az) | Yes | Yes | |||
| Auto Power Down | Yes | Yes | |||
| Short Cable Detection | Yes | Yes | |||
| DC Input | 5V/0.7A | 12V/0.5A | |||
| Power Consumption (Max and Standby) | 2.34W/0.45W | 3.52W/0.57W | |||
| Power On/Off Switch | - | Yes | |||
| Heat Dissipation (Max and Standby | 7.99 BTU/1.53 BTU | 12.01 BTU/1.95 BTU | |||
| Other Features | |||||
| Port LED | Power, Link/Activity | Power, Link/Activity | |||
| Address Table Size | 2K | 8K | |||
| Physical Specifications | |||||
| Width x Depth x Height | 118 x 73 x 30 mm | 165 x 93 x 30 mm | |||
| Weight | 0.09 kg | 0.16 kg | |||
| Environmental Specifications | |||||
| Operating Temperature | 0° C to 40° C | ||||
| Storage Temperature | –20° C to 70° C | ||||
| Operating Humidity | 90% maximum relative humidity, non-condensing | ||||
| Storage Humidity | 5% to 95% relative humidity | ||||
| Standards | |||||
|
|||||
*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
Diagram:

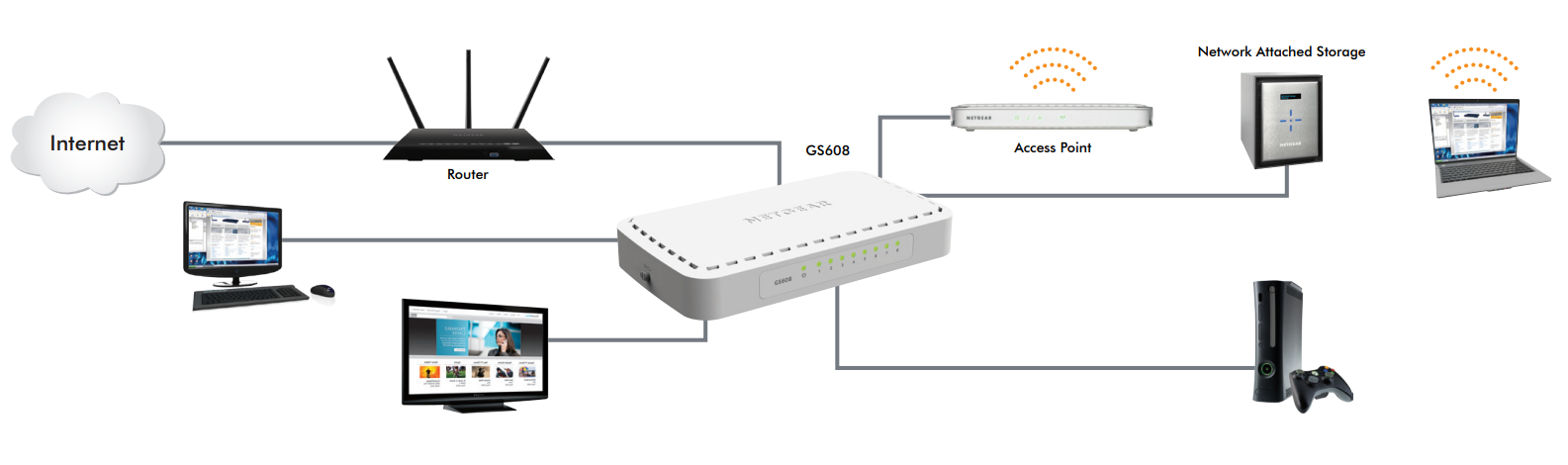

Small Office/Home Office Network Diagram
Documentation:
Download the NETGEAR GS608 Datasheet (PDF).
