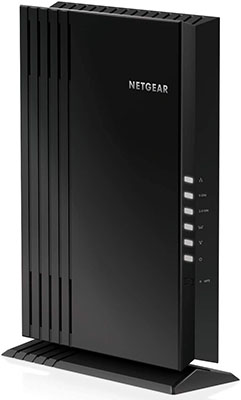

NETGEAR AX1800 4-Stream WiFi Mesh Extender
Create a power WiFi 6 Mesh System

NETGEAR AX1800 4-Stream WiFi Mesh Extender

NETGEAR Products
NETGEAR Nighthawk WiFi 6 Router
USA: FREE Ground ShippingNETGEAR AX1800 4-Stream WiFi Mesh Extender
#EAX20-100NAS
List Price: $232.74
Our Price: $149.99

More pricing below, click here!

Overview:

NETGEAR AX1800 4-Stream Mesh Extender (EAX20) supports the latest generation WiFi 6 (802.11ax) standard. This powerful Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps. With 4-streams WiFi more spatial streams provide more available bandwidth and less congestion for all the devices in the WiFi network. Ideal for small to medium-sized homes with up to 4 bedrooms, you can extend powerful WiFi to every corner and take advantage of the fastest broadband speeds available to get the speeds you pay for. Upgrade to a WiFi 6 Mesh Extender to experience the fastest WiFi speeds and up to 1.5-times greater network capacity than WiFi 5, so you can connect more and more devices on your WiFi today and tomorrow without worry.

  • Easily create a whole home WiFi mesh system with your existing router
  • 4-Stream WiFi 6 with speeds up to 1.8Gbps for fast wireless speeds
  • 1.5X the performance and capacity of 11ac
  • Powerful 1.5GHz quad-core processor for smooth 4K streaming and gaming
  • Gigabit WiFi connectivity for compatible mobile devices and laptops

Ideal Uses

  • Reliable Smart Home Connectivity
    Wi-Fi 6 features simultaneous dual band support, making it ideal for multiple IoT devices in our connected homes. Your WiFi will stay strong and reliable, even with more WiFi devices on your network from the sensor-based low-bandwidth devices to high-end video streaming.
  • Smoother UHD 4K/8K Streaming
    Watch ultra-HD 4K videos on your smart TV while your famly games online and uploads pictures from their smartphones. Streaming from Netflix or YouTube has never been so smooth.
  • Faster and Farther Coverage
    Get faster WiFi speeds to more devices for your premium router or your Internet Provider rented modem.

Easily Create a Mesh WiFi 6 System with your Existing Router

Expand coverage of your Existing Router using your current WiFi name and password. This desktop design has two powerful internal antennas that extend WiFi signals to where your router WiFi cannot reach. This AX1800 Mesh Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Easily Create a Mesh WiFi 6 System with your Existing Router

Great Speed and Range without Bandwidth Drop

Your upgraded WiFi experience will deliver smooth streaming of ultra HD content on your new smart TV, music for your WiFi connected speakers, and fast online game play throughout your home.

No More Switching WiFi Network Names

AX1800 4-Stream Mesh Extender creates a seamless network throughout your home by using the same WiFi network name (SSID) as your router. Your WiFi devices like the smartphones and laptops will remain connected to the same network name without disconnect and reconnect as you move around your house and yard.

Connect More

A desktop extender like EAX20 is a great choice if you need more Ethernet ports to connect network-ready wired devices. Use the extender's four (4) Gigabit Ethernet ports to connect wired devices like Smart TVs and game consoles.

Nighthawk Router + Nighthawk Mesh Extender

Love your Nighthawk router? Now you can easily build your own powerful Nighthawk Mesh network. Enjoy all the advanced router features that a Nighthawk has to offer and easily build your own powerful WiFi Mesh System. The Nighthawk AX8 is compatible with any WiFi router but delivers best mesh performance with the Nighthawk WiFi 6 routers.

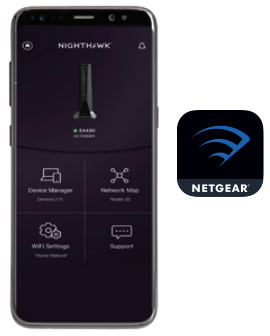

Nighthawk App

The NETGEAR Nighthawk App makes it easy to set up your extender and get more out of your WiFi. With the app, you can install your extender in a few steps—just connect your mobile device to the network and the app will walk you through the rest. Once set up, you can use the intuitive dashboard to manage your network.

  • Network Management—Easily monitor and manage your home network
  • Quick Setup—Get connected in just minutes
  • Get it at nighthawk-app.com

Features:

4-Stream WiFi 6

Upgraded WiFi that's up to 1.5X the performance & capacity of 11ac.

One WiFi Name & Smart Roaming

Seamless mesh WiFi throughout the home for all your devices.

Increased Coverage for Your Smart Home

Strong WiFi signals reach every corner of your smart home.

Ultra-fast WiFi Speeds up to 1.8Gbps

Smoother 4K HD streaming & gaming.

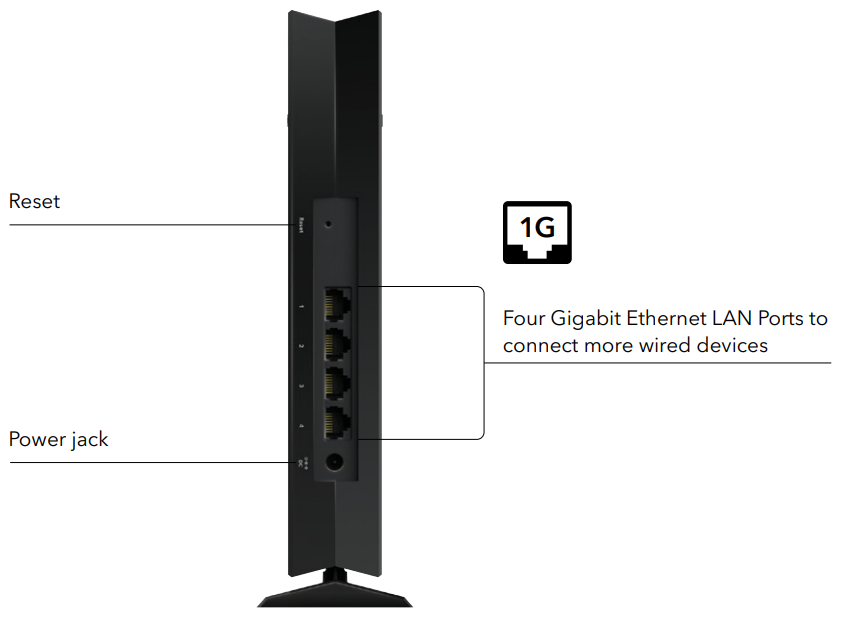

Connection Diagram:

Connection Diagram

WiFi 6:

WiFi 6 for business and home office

NETGEAR has been at the forefront of innovation and cutting-edge solution for more than 20 years, providing innovative and ground-breaking network solutions which include a suite of advanced WiFi 6 products – giving you access to the most advanced WiFi on the planet.


WiFi 6 overcomes these challenges

  • Coverage and range, especially through walls in blind spots
  • Need for faster and easier set up
  • Network and per device speed, especially with more devices
  • Demand for security and access control
  • Need for smooth configuration and firmware updates

WiFi 6 for Business

Why are businesses adopting WiFi 6?

  • Best WiFi Speed – 70% more throughput than WiFi 5
  • Connect More Devices - optimized speed even in high density areas
  • Improved Coverage
  • Future-Proofing
  • Compatibility
  • Battery Efficiency
  • Seamless Roaming
  • Faster Backbone with 2.5G - Multi-gig networking and connectivity
  • High Density IoT
  • Safer Networks
WiFi 6 for Business

Remote WiFi 6 Management

Most NETGEAR WiFi 6 business access points include NETGEAR Insight, the award-winning remote cloud management solution for easy installation, monitoring, and management from anywhere.

NETGEAR Insight is an industry first in network management, providing easy plug-and-play setup and management. Its cloud portal can be accessed via an intuitive web interface or the Insight mobile app. Insight offers a wide variety of configuration options for the most basic networks to multi-tenancy and multi-roles.

NETGEAR Insight enables easy configuration, monitoring, and management of your wireless access points together with Insight-managed switches and storage. Wireless management features include: Instant WiFi for automatic wireless configuration to limit interferences, frequency band selection, VLAN creation and association with SSID, WiFi security configuration, visibility into WiFi clients, reporting, and many more.

Use cases

Who is upgrading to WiFi 6?

  • Sharing a WiFi connection with the rest of the family as people are working from home, video calling or downloading large files can slow everyone down. WiFi 6 is optimized for concurrent users.
  • As medicine moves toward more innovative technologies for imaging, record storage, and telehealth, it requires more bandwidth. Upgrading to WiFi 6 helps ease high demand and provide efficiency.
  • Older, legacy WiFi systems have slow bandwidth lack device capacity and less secure connections. WiFi 6 can meet growing demand for connectivity across all the technology and devices the industry depends on.
  • As wireless handheld Point of Sale devices increase in use so does the need for suffcinet bandwidth and total site coverage. WiFi 6 can meet those growing demands.
  • Libraries, city halls, police offices and the public sector in general are becoming more technologically advanced and reliant on WiFi and need the bandwidth capacity and efficiency it offers.
  • The increase in video streaming, online with WiFi 6 greatly improve student’s and teacher’s educational experiences.
  • From AI assembly line robots to autonomous delivery trucks, most or all new machinery and loT will require high bandwidth and capacity.
  • Finance companies need high bandwidth and zero-delay streaming to meet the needs of daily stock market traders and demanding finance apps. WiFi 6 can keep up with these demand.
  • Houses of worship need great network conncetivity to make sure everything runs smoothly for the team and improve the congregation’s experince. Reliability, simplicity and affordability are high priorities. WiFi 6 checks all those boxes.


The WiFi 6 Difference

Increased speed, coverage, and capacity for today’s WiFi demands

  • Speed
    Up to 70% faster speeds on both bands
  • Coverage
    Up to 50% more coverage, with no dead zones
  • Device Capacity
    More simultaneous users, with high WiFi quality for everyone
WiFi 6 Difference

Specifications:


Technical Specifications
WiFi Technology 802.11ax
WiFi Performance AX1800
WiFi Band
  • Band 1: 0.6Gbps @2.4GHz - 1024QAM
  • Band 2: 1.2Gbps @5GHz - 1024QAM
Number of Ethernet Ports Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
Key Features
  • Gigabit Internet speeds throughout the home*
  • 1.5 X Better Performance than a Wi-Fi 5 (802.11ac) Extender—4 Stream WiFi with up to 0.6+1.2 Gbps† for fast wireless speeds**
  • More WiFi for More Devices— OFDMA allows efficient data transmission up to 4 devices at the same time. Uplink OFDMA improves scheduling during high volumes of upload traffic.§
  • Up to 4 Simultaneous WiFi Streams—4-stream MU-MIMO‡ enables up to four (4) 1x1 devices to stream content at the same time
  • 160MHz Channel Support***—Gigabit speeds for compatible mobile devices & laptops
  • Powerful Processor—64bit 1.5GHz dual-core processor ensures smooth 4K UHD streaming & gaming
Security Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
Ease of Use
  • Nighthawk App—Easily set up your extender and get more out of your WiFi
  • Wi-Fi 6 Supports All Current WiFi Devices—Backward compatible with Wi-Fi 5, Wi-Fi 4 and earlier generation WiFi devices
  • Push & Connect using WPS
Dimensions 9.5 x 6.7 x 2.5in (241.7 × 169.5 ×63.4mm)
Weight 1.1lb (504.4g)
Package Contents
  • AX1800 4-Stream WiFi Mesh Extender (EAX20)
  • Quick start guide
  • Power adapter
Standards
  • IEEE 802.11 b/g/n/ax 2.4GHz
  • IEEE 802.11 a/n/ac/ax 5GHz
  • IEEE 802.11 k
  • Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
System Requirements
  • 2.4 and/or 5GHz 802.11 a/b/g/n/ac/ax WiFi router or gateway
  • Microsoft Internet Explorer 8.0, Firefox 20 or Safari 5.1 or Google Chrome 25.0 browsers or higher

* 90-day complimentary technical support following purchase from a NETGEAR authorized reseller.
1 Works with devices supporting WPS.
§ Requires compatible AX clients with DL-OFDMA and UL-OFDMA support.
† Comparable with an AC1200 WiFi Range Extender.
†† Performance compared to IEEE 802.11ac wireless technology.
‡ Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput and data over distance will vary. Network conditions and environmental factors, including volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput rate and wireless coverage. Data throughput, signal range, and wireless coverage per sq. ft. are not guaranteed and may vary due to differences in operating environments of wireless networks, including without limitation building materials and wireless interference. Specifications are subject to change without notice. The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.

Documentation:

Download the NETGEAR AX1800 4-Stream WiFi Mesh Extender Datasheet (PDF).
