Insight Managed 8-Port Gigabit Ethernet Smart Cloud Desktop Switch w/2 SFP Fiber Ports
Sorry, this product is no longer available, Please contact us for a replacement.
More pricing below, click here!
Experience the most versatile and easy to manage switches in the market
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to simpler management and remote monitoring to ensure your network is “always up”. NETGEAR also understands that small business owners shouldn’t have to understand networking and IT; they need a network that’s easy-to-setup and is reliable, so they can focus on their business, not their network. To that end, NETGEAR is introducing our most versatile and easy-to-manage switches ever, NETGEAR Insight Managed Smart Cloud switches.
The Insight Managed Smart Cloud Gigabit Ethernet Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design silent or whisper-quiet operation, they are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there.
Innovative features for the most versatile and easy-to-manage switches in the market
Your network. Anytime. Anywhere.
The NETGEAR Insight Managed Smart Cloud Switches fundamentally change the way you think of networks and IT. Using the NETGEAR Insight app with Insight Managed Smart Cloud Switches and Wireless Access Points provides:
- Instant in-app discovery & set-up
- Local or remote configuration and monitoring from your mobile device, PC, Mac or tablet
- Centralized network configuration polices with auto-join and configure (zero-touch provisioning)
- Multi-site/remote network management and monitoring with single pane-of-glass view
- Multi-switch/multi-port concurrent configuration using the Port Config Wizard
Remote monitoring and management from the palm of your hand!
With the NETGEAR Insight app, you can setup, manage, and monitor your networks from anywhere, anytime, from the palm of your hand on your phone or tablet! Or, for a larger screen experience, you can use the Insight Cloud Portal from your PC, Mac, or tablet web browser.
Network-centric configuration and management
NETGEAR Insight Managed Switches and Wireless Access Points using the NETGEAR Insight app allow for cross-device automated configuration of VLANs, QoS, ACLs, and LAGs. Auto-join and configure (zero-touch privisioning) allows for additional devices added seamlessly.
Fully-integrated cloud-manageable devices
NETGEAR Insight Managed switches are fully-integrated, cloud-manageable, plug-andplay devices. Just connect to your network and without any setup, they’re passing traffic. For configuration setup, management, and monitoring, you can use the Insight mobile app on your mobile device or the Insight Cloud Portal from your PC, Mac, or tablet web browser. No additional cloud controller, appliance, network manager, or on-premise cloud server necessary.
Clean, sleek silent (or whisper-quiet) designs

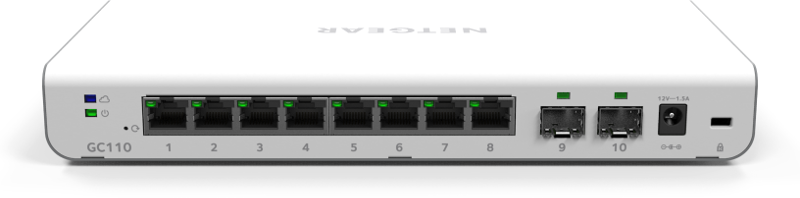

Insight Managed switches have a modern, clean design, with simple power and cloud connection LEDs on the front. GC110, GC110P and GC510P models are all fanless and silent, while GC510PP has a whisper-quiet fan.
Great choice of non-PoE, PoE and PoE+ options
All models have 8 copper Gigabit Ethernet ports and two 1G SFP fiber ports for uplinks. On PoE/PoE+ models, all 8 gigabit copper ports support PoE or PoE+, with varying PoE power budgets to suit every need.
Build a future-proof network with NETGEAR Insight Managed Switches
- Extensive L2+/L3 Lite switching features including static routing
- Comprehensive IPv6 management, QoS and ACL support, ensuring investment protection and a smooth migration to IPv6- based networking
- Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS)
- Dynamic VLAN assignment for easy user authentication and location-independent access to network
- Up to 195W PoE power, with the flexibility to add power-hungry devices such as 11ac Wireless APs, VoIP voice and video phones, security/surveillance cameras including PTZ, and other IoT devices
- Advanced per-port PoE controls (set specific power budget per port in addition to automatic class-defined) and PoE scheduling on PoE models
NETGEAR quality and reliability
- Industry-leading 5-year Limited Hardware Warranty*
- Minimal down-time with Next-BusinessDay Replacement Warranty
- Get deployment assistance with 90-days Free Advanced Technical Support**
*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies—not software or external power supplies. ** The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.
Features and Benefits:
|Fully-integrated Cloud-manageable Devices||Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware, no software or server to setup; nothing. Just connect and go.|
|1000BASE-T Copper Ethernet PoE (GC110P)/PoE+ (GC510P/ GC510PP) connections||Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports or PoE power budget.|
|1000BASE-X SFP ports||Two dedicated Gigabit SFP ports Dedicated SFP ports provide fiber uplinks without sacrificing any downlink copper Gigabit Ethernet port, and across long distances. Support for Fiber and Copper modules.|
|Front Cloud & Power LEDs||Quickly confirm switch has power and is connected to the cloud/internet.|
|Silent or Low (GC510PP) Acoustics||Fanless design (all except GC510PP) allows for silent operation; temperature- and load-based fan-speed control (GC510PP) provides whisper-quiet operation; great for deployment in noise-sensitive environments.|
|Energy Efficient Ethernet (IEEE 802.3az)||Maximum power reduction for ongoing operation cost savings.|
|Desktop, Wallmount, or Rackmount (GC510P, GC510PP)||Flexible deployment on desktop, wall or other location using 75mm VESA-compliant mounts, or rackmount using the included rackmount kit (GC510P, GC510PP only).|
|Kensington Lock Slot||Prevent theft, removal, or tampering when used for desktop deployment.|
|Remote setup, management, and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet||Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it.|
|Auto-join and Configure (Zero-Touch Provisioning)||Additional Insight Managed devices added to the network automatically inherit settings and configuration.|
|Multi-site, Multi-network Single Pane-of-Glass View||View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight.|
|Comprehensive IPv6 Support for Management, ACLs and QoS||Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.|
|IPv4 & IPv6 Static Routing||A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.|
|Robust security features:
||Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.|
|Comprehensive QoS features:
||Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.|
|Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN!||Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP, H.323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.|
|IGMP Snooping and MLD Snooping||Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.|
|Protected Ports||Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.|
|DHCP Snooping||Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.|
|Dynamic VLAN Assignment (RADIUS)||IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.|
|Private VLAN||Private VLANs help reduce broadcast with added security.|
|Port Trunking/Link Aggregation (LACP)||Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections.|
|Loop Prevention and Auto-DoS Prevention||Detect and prevent (auto port shutdown) accidental network loops and protect against DoS attacks.|
|PoE Timer and Scheduling (except GC110)||Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/off of PoE ports.|
|Port Mirroring and Cable Test||Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables.|
|Firmware Updates from Cloud||Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere!|
At a Glance:
Software at a Glance
|MANAGEMENT||LAYER 2+ / LAYER 3 LITE FEATURES|
|Device Management||Network-wide Management||IPv4/IPv6 ACL and QoS||IPv4/IPv6 Multicast Filtering||VLANs||Auto-VoIP, Auto-Video||Convergence||Link Aggregation/Port Trunking||Jumbo Frame Support||IPv4 & IPv6 Static Routing|
|NETGEAR Insight mobile app or Insight Cloud Portal for local/remote/anywhere management from your mobile device, PC, Mac, or tablet
Local web browser-based management GUI
IPv4 & IPv6 management
|Centralized network configuration (policies)
Auto-join & configure (zero-touch provisioning)
Multi-site, multi-network single pane-ofglass view
Multi-switch/multi-port concurrent configuration
|L2, L3, L4 Ingress||IGMP and MLD Snooping||Static, Dynamic, Voice, Video, MAC, Protocolbased, and Private||Yes||LLDP-MED, RADIUS, 802.1X||LACP and Manual Static LAGs (up to 5 LAGs with max 8 members)||Yes (up to 9K)||Yes|
Performance at a Glance
|Model Name||CPU & Memory||Fabric (Fullduplex)||Latency (64-byte Packet)||Packet Buffer||Packet Forwarding Rate (64-byte)||ACLs||MAC Address Table ARP/NDP Table VLANs||Static Routes (IPv4 & IPv6)||Priority Queues||Multicast IGMP Groups|
|400 MHz CortexA9
Single Core, 256MB RAM
8MB SPI + 256
|20Gbps line-rate||1G Copper: 3.000 μs
1G SFP: 2.000 μs
|1.5 MB||14.9 Mfps||100 (shared)||16K MAC (dynamic)
384 ARP/256 NDP
|Model Name||Form-Factor||LEDs (System)||100M/1G Copper (RJ-45) Ports||1G SFP Fiber Ports||PoE/PoE+ Ports (Budget)||LEDs (Per Port)||Power Supply||Fans|
|GC110||Desktop, Wallmount||Cloud, Power||8||2 (dedicated)||N/A||Speed/Link/Activity||External adapter||Fanless|
|GC110P||Desktop, Wallmount||Cloud, Power, PoE Max||8||2 (dedicated)||8 PoE (62W)||Speed/Link/Activity, PoE||External adapter||Fanless|
|GC510P||Desktop, Wallmount, Rackmount (kit)||Cloud, Power, PoE Max||8||2 (dedicated)||8 PoE+ (130W)||Speed/Link/Activity, PoE||1 internal PSU, fixed||Fanless|
|GC510PP||Desktop, Wallmount, Rackmount (kit)||Cloud, Power, PoE Max, Fan||8||2 (dedicated)||8 PoE+ (195W)||Speed/Link/Activity, PoE||1 internal PSU, fixed||1 internal fan, fixed|
In a Business/Retail Environment
In a Small Office/Workgroup Environment
In a Security and Surveillance Environment
Download the NETGEAR Insight Managed Gigabit Ethernet Smart Cloud Switches Datasheet (PDF).
