NETGEAR LB1121
4G LTE Modem with PoE


NETGEAR LB1121

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Simple, Fail-safe Connectivity

The NETGEAR LTE Modem LB1121 with Power over Ethernet (PoE) is a simple LTE connectivity solution for all your devices and equipment. Simply connect this LTE Modem directly to your router, switch or computer to provide an automatic 4G LTE or 3G fallback broadband connection, with download speeds of up to 150 Mbps. Power-over-Ethernet is ideal for remote locations, without the need to plug in a power adapter. Designed for simple connectivity, the LTE modem is compact, convenient, and easy to setup.

Simply connect this modem directly to your router, switch or computer to provide an automatic 4G LTE or 3G broadband backup connection with download speeds of up to 150 Mbps. It has a Gigabit Ethernet WAN port so that you can plug in your wireless router and share connection with all your WiFi and wired devices. In addition, this LTE modem comes with Power over Ethernet for remote locations.

  • Connects directly to a computer or wireless router to give you high-speed LTE Internet access
  • Secure and super-fast 4G LTE connectivity with 3G fallback for broadband failover
  • Up to 150 Mbps download and 50 Mbps upload speeds
  • Gigabit Ethernet WAN port for connection pass-through. Power-over-Ethernet for remote locations
  • Two connectors available to connect optional 4G/3G antennas for better signal reception
  • AT&T Network-Ready device

Features:

Super-fast Connectivity with 4G LTE & 3G

Get secure and super-fast 4G LTE connectivity with 3G/2G fallback for broadband failover. Get up to 150 Mbps download and 50 Mbps upload speeds.

Wired Connections

Gigabit Ethernet WAN port for connection pass-through. Power-over-Ethernet for remote locations.

Better Signal Reception

Two connectors available to connect optional 4G/3G antennas for better signal reception.

Use Cases

We all depend on a fast, always-on broadband connection, and planning ahead to ensure everyone stays connected is essential.

Using the NETGEAR 4G LTE Modem for broadband connectivity enables Internet access at fast speeds with the convenience of portability and flexibility. Unlike other connectivity sources, the NETGEAR 4G LTE Modem can be easily installed in a matter of minutes, and it's ideal for a wide range of environments including locations where wireline option is not readily available, and where PoE infrastructure is available.

Some typical applications include:

  • LTE connectivity for business' needs
  • Kiosk — wire-free connection
  • Enterprise/office locations with PoE sources

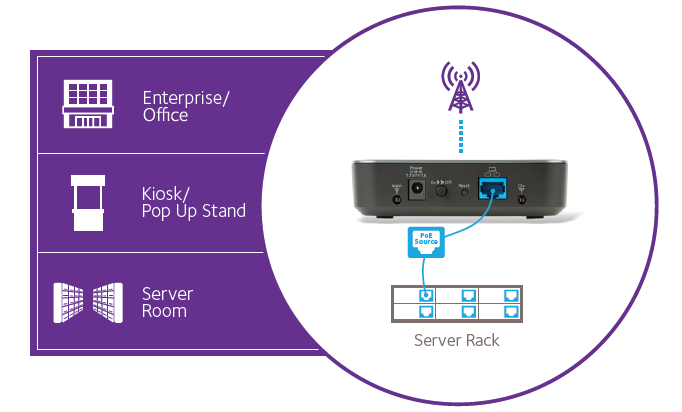

LB1121 Connection Diagram

Connection Diagram:

Connection Diagram

Specifications:

NETGEAR LB1121 Specifications
Band Support
  • LTE Category 4 (up to 150 Mbps): B2, 4, 5, 12
  • UMTS DC-HSPA+ - (up to 42 Mbps): B2, 5
Power Adapter 12V DC, 1A
Key Features
  • Built-in Gigabit WAN connection for flexible home and office connectivity
  • Fast 4G LTE backup speeds up to 150 Mbps for downloads and 50 Mbps for uploads
  • Provides 4G to 3G fallback support
  • Power-over-Ethernet (PoE)
  • SMS message alerts for firmware updates, data usage, and failover to LTE
  • TR-069 for remote management
  • Two TS-9 connectors available to connect optional 4G/3G antennas for better signal reception
  • Direct IP pass-through for secure enterprise VPN configurationq
  • Manage settings via a browser-based web UI
  • LEDs on device to check network status instantly
  • Portable, light and compact design for you to take anywhere
LEDs
  • Power
  • LTE Signal Quality (5 LED bar graph)
  • LAN
Physical Specifications
  • Dimensions: 4.7 (W) x 3.9 (D) x 1.2 (H) in
  • Weight: 0.4 lb
Package Content
  • 4G LTE Modem (LB1121)
  • Power adapter
  • Ethernet cable
  • Quick start guide
Interface
  • 1 Gigabit WAN Ethernet RJ-45 port
  • Internal WWAN antennas with support for optional TS9 external antennas
  • 3FF (micro) SIM card slot
System Requirements
  • Compatible 2G/3G/4G LTE Mobile Service (3FF Micro-SIM)
  • Microsoft Windows 7, 8, 8.1, 10, Vista, XP, Mac OS (10.6.8. and newer) and other operating systems running a TCP/IP network (for accessing Web Management User Interface)
  • Compatible browsers such as Microsoft Internet Explorer 5.0, Firefox 2.0, Safari 1.4, or Google Chrome 11.0 browsers or higher (for accessing Web Management User Interface)
Support 90-day complimentary technical support*
Warranty www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.

Documentation:

Download the NETGEAR LB1121 Datasheet (PDF).
