Overview:

NETGEAR Smart Switches with PoE meet business networks growing needs by providing powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability that can support the business’s needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 access points now imply the need for faster speeds in the network. The MS108TUP supports 2.5 Gigabit speed connectivity and Power-OverEthernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Smart switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an allin-one solution, providing management and power to these applications would be ideal. The MS108TUP has the option to be remotely controlled through the NETGEAR Insight Remote Cloud Management platform.

Highlights:

  • 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
  • Business-friendly and easy-to-use web browser-based management GUI
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto “denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • IGMP Snooping and Querier for multicast optimization
  • IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Static Routing, and static and dynamic IPv6 address assignment
  • SNMP v1, v2c, v3 and RMON remote monitoring
  • Uninterrupted PoE to ensure power stays on during software upgrade and soft reboot
  • PoE Self-healing to reboot PoEconnected devices when they fall offline or go unresponsive.
  • Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
  • Loop prevention and broadcast storm controls
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Jumbo frame support
  • Advanced features such as per port PoE controls
  • Fanless, silent operation with desktop and wall-mount options
  • NETGEAR Insight Remote Cloud Management option available
  • Scripting and management via direct text command using Lite Command Line Interface (CLI).
  • NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
  • Lifetime 24/7 Chat Technical Support*
  • Next-Business-Day Hardware Replacement**
  • Limited Lifetime Hardware Warranty

Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.

By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Unique advanced management features of these Insight managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with auto-schedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight managed devices added to the network
  • Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
**The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

Specifications:

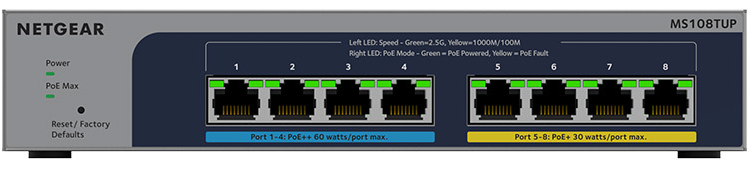

Front View

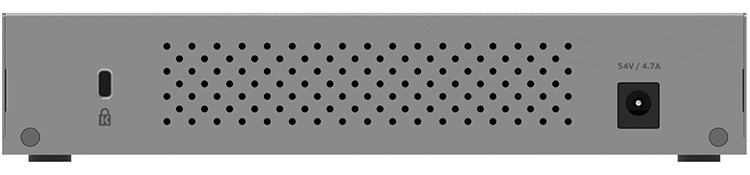

Rear View

MS108TUP Specifications
Features
1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T 8
Enclosure Metal
Connector type Metal
PoE
# of PoE ports 8
# of PoE/ PoE+ / PoE++ ports 4 PoE+ and 4 PoE++
Total PoE/PoE+ budget 230W
Advanced PoE controls Yes
PoE scheduling Yes
Uninterrupted PoE Yes
PoE Self-healing Yes
Performance Specifications
Forwarding modes Store-and-forward
Bandwidth 40 Gbps
Max MAC entries 16K
Buffer size 1.5MB
Energy Efficient Ethernet (IEEE 802.3az) compliant Yes
Queue WRR Ratio WRR
Priority queuing 12,000 bytes
Jumbo frame support 0 (Fanless)
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) 373,643.7 hrs (42.65 yrs)
L2 Services - VLANs
VLAN (# supported) 64
IEEE 802.1Q VLAN tagging Yes
Port-based VLANs Yes
L2 Services - Availability
Link aggregation/ port trunking Yes
Number of static manual LAGs and # of members 4 LAG with max 4 members in each LAG
L2 Services - Multicast Filtering
IGMP snooping (v1, v2 and v3) Yes
Block unknown multicast Yes
Supported multicast groups 128
L3 Services - DHCP
DHCP client Yes
L2 DHCP relay Yes
Quality of Service
Rate limiting Yes
DSCP Yes
IEEE 802.1p COS Yes
Port-based QoS Yes
TOS Yes
WRR (Weighted Round Robin) Yes
Strict Priority queue technology No
IEEE Network Protocols
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3bz 2.5GBASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3u 100BASE-T
  • IEEE 802.1p Class of Service
  • IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
  • IEEE 802.3ad Dynamic Link Aggregation (LACP)
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.3x Full-duplex Flow Control
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3bt PoE++
Management
Cloud/Remote management Yes
Insight mobile app & Insight Cloud Portal management Yes
Networking monitoring Yes
Data/performance logs Yes
Centralized network configuration/policies (network-centric management) Yes
Device auto-join and configure (zero-touch provisioning) Yes
Multi-site, multi-network single pane-of-glass view Yes
Multi-switch, multi-port concurrent configuration Yes
System password Yes
Web browser based management GUI Yes
Smart CLI: direct text command using Lite Command Line Interface (CLI) Yes
PC utility No
Port mirroring Yes
Max number of source ports allowed (one-to-one port mirroring) 1
Many-to-one port mirroring No, 1-to-1 only
Cable test utility Yes
FW Upgrade thru plus utility (TFTP) No
Config download (to switch) thru plus utility No
Config upload (to server) Yes
LEDs
Per port Speed, Link, Activity, PoE
Per device Power, PoE Max
Physical Specifications
Dimensions 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
Weight 0.9 kg (1.984 lb)
Environmental Specifications
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 90% maximum relative humidity, non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature – 4° to 158°F (–20° to 70°C)
Storage Humidity 95% maximum relative humidity, non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Certifications and Compliance
Certifications CE mark, FCC Part 15 class B, CE/EN55032/24, CSA, VCCI, ACMA, KC, CCC, BSMI
Warranty and Support
Hardware warranty (All except China/India) Limited lifetime* warranty
External power adapter warranty 2-year warranty
Technical support (online, phone) 90 days free technical support with registration
ProSUPPORT OnCall 24x7 service plans Category 2:
PMB0312 (1 yr.)
PMB0332 (3 yrs.)
PMB0352 (5 yrs.)
Package Contents
All Models
  • NETGEAR MS108TUP Smart Switch
  • Power adapter (power cable varies by region)
  • Wall installation kit
  • Rubber feet
  • Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

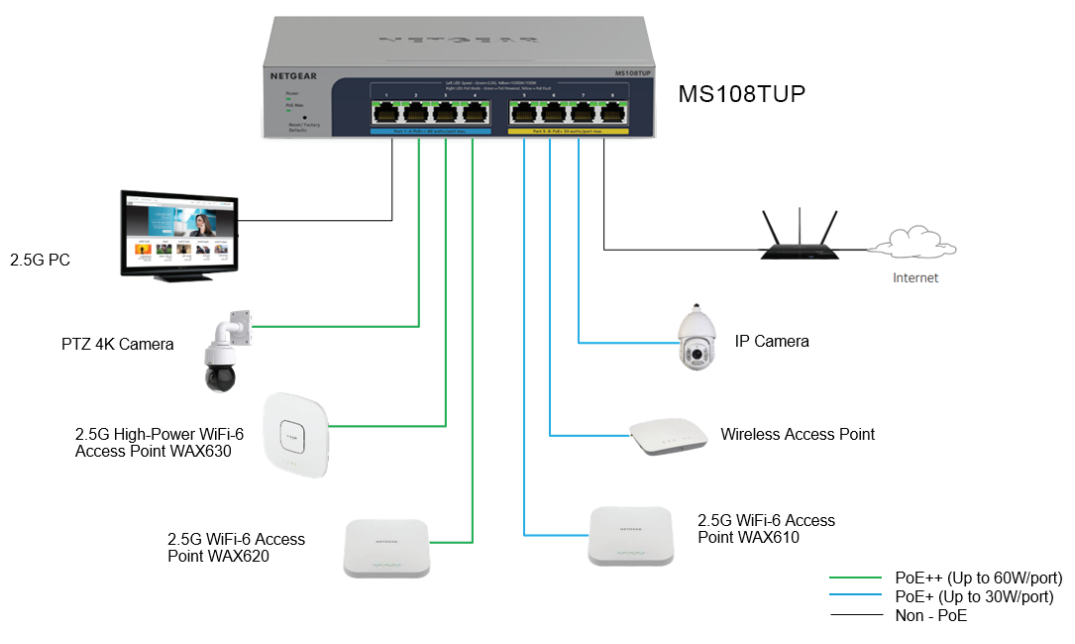

Network Diagram:

Power The Devices in Your SMB Business

Power The Devices in Your SMB Business
