NETGEAR MS108UP
8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Unmanaged Switch

NETGEAR MS108UP

Netgear Products
NETGEAR Unmanaged Switches
NETGEAR MS108UP 8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch
#MS108UP-100NAS
List Price: $623.96
Add to Cart for Pricing

More pricing below, click here!

Overview:

NETGEAR brings the first Unmanaged Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/ port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

Highlights:

  • 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8.
  • 230W total PoE budget available across 8 ports.
  • Simple set up with no software or configuration needed.
  • Easy monitoring through per port LEDs for port activity and speed.
  • Unique PoE Auto-Balance technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level.
  • Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings.
  • 8 ports of multi-gig 1G/2.5G speeds to connect devices instantly and give them each exactly the speed they need: 1G or 2.5G automatically.
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Fanless, silent operation with desktop and wall-mount options
  • Lifetime 24/7 Chat Technical Support*
  • Next-Business-Day Hardware Replacement**
  • Limited Lifetime Hardware Warrant

*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
**The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

Features:

Multi-Gigabit Ethernet

8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support

4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

PoE Auto-Balance

Automatically balances the PoE power based on the device needs independent of PoE class detected

Non-Blocking Switching

40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design

Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options

Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

Specifications:

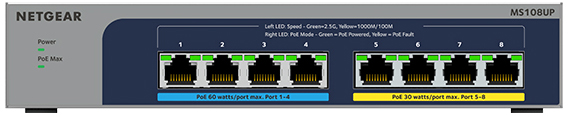

Front View

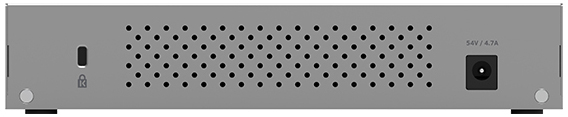

Rear View

MS108UP Specifications
Features
1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T 8
Enclosure Metal
Connector type Metal
Form-Factor Desktop/Wall-mount
PoE
# of PoE ports 8
# of IEEE 802.3at ports (30W/port) 4
# of IEEE 802.3bt Type 3 ports (60W/port) 4
Total PoE/PoE+/PoE++ Budget 230W
PoE Auto-Balance Yes
Performance Specifications
Bandwidth 40 Gbps
Max MAC entries 16K
Buffer size 1.5MB
Energy Efficient Ethernet (IEEE 802.3az) compliant Yes
Queue WRR Ratio 1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) - 1000Mbps Port 1,488,000pps
Forwarding Rate (using 64-byte packets) - 2.5Gbps Por 3,720,000pps
Latency (using 64-byte packets) - 1000Mbps Port (average) <3.593µs
Latency (using 64-byte packets) - 2.5Gbps Port (average) <5.874µs
Jumbo frame support 12,000 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) 0
Auto MDI/MDI-X Cable Detection Yes
Auto-sensing Half/Full Duplex Switched Ports Yes
Non Head-of-Line Blocking Architecture Yes
Mean Time Between Failures (MTBF) @ 25° C 373,644 hrs (42.6 yrs)
IEEE Network Protocols
IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.1p Priority
  • IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
  • IEEE 802.3 CSMA/CD
  • IEEE 802.3x Full-duplex Flow Control
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3bt PoE++
Quality of Service
802.1p-based QoS/CoS Supported Yes
Honors DSCP (DiffServ) Tags Yes
LEDs
Per port Speed, Link, Activity, PoE
Per device Power, PoE Max
Power Consumption
DC Input/Power In External (54V/4.7A)
Power Consumption (Max and Standby) 16.58W(no PoE), 270.5W(with PoE MAX) / 6.95W Standby
Heat Dissipation (Max and Standby) (BTU/Hr) 923.49BTU/23.73BTU
Energy Efficiency
IEEE 802.3az (Energy Efficient Ethernet) Yes
Auto Power Down Yes
Short Cable Detection/Power Saving Yes
Fan/Fanless Fanless
Physical Specifications
Dimensions 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
Weight 0.9 kg (1.984 lb)
Environmental Specifications
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 90% maximum relative humidity, non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature – 4° to 158°F (–20° to 70°C)
Storage Humidity 95% maximum relative humidity, non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Certifications and Compliance
Certifications CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Safety Certifications
Certifications CB, CSA, CCC, BSMI, RCM
Warranty and Support
Hardware warranty (All except China/India) Limited lifetime warranty
External power adapter warranty N/A
Technical support (online, phone) 90 days free technical support with registration
ProSUPPORT OnCall 24x7 service plans Category 2:
PMB0312 (1 yr.)
PMB0332 (3 yrs.)
PMB0352 (5 yrs.)
Package Contents
All Models
  • NETGEAR Plus Switch
  • Detachable power cable (varies by region)
  • Power Adapter
  • Wall installation kit
  • Rubber feet
  • Installation guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

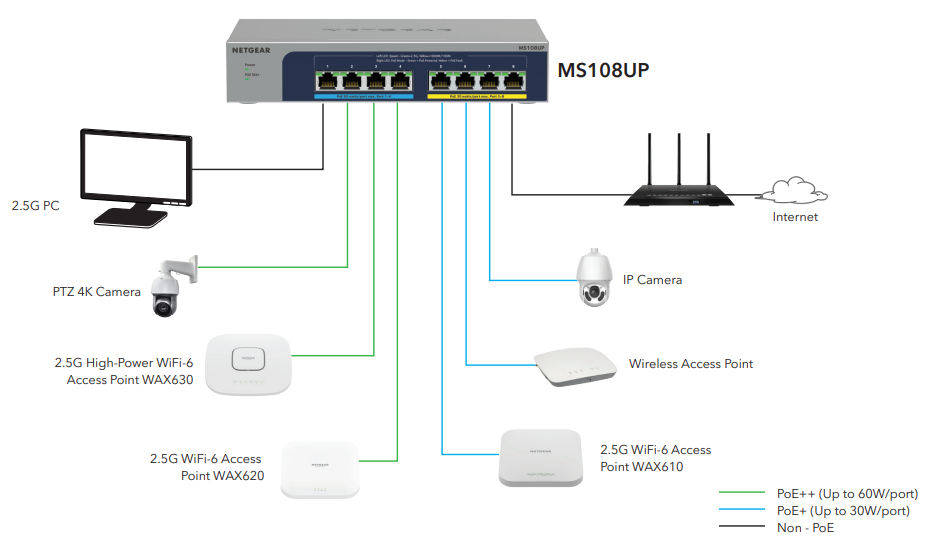

Network Diagram:

Power The Devices in Your SMB Business

Power The Devices in Your SMB Business
