NETGEAR XS508TM
8-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports

NETGEAR XS508TM

Netgear Products
NETGEAR Smart Switches
NETGEAR XS508TM 8-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports
#XS508TM-100NAS
List Price: $1,489.01
Add to Cart for Pricing

More pricing below, click here!

Overview:

Top-of-the-line cloud manageable Smart Switch for 10G speed connectivity

As a leading provider of network equipment, NETGEAR Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for access points now require faster speeds in the network.

The XS508TM and XS516TM are 10G/ Multi-Gigabit Ethernet Smart Switches with 2 10G SFP+ ports that joined the NETGEAR Total Network Solution family, adding the first fully 10G series to our Insight compatible switch line. NETGEAR Pro WiFi Access Points with power adapters are perfect for use with the XS508TM and XS516TM switches.

NETGEAR Smart Switches offer powerful L2+/Lite L3 features and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, for 2.5G or 5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.

These 10G/Multi-Gigabit Ethernet Smart Switches support NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Highlights:

Temperature- and load-based fan-speed control combines accurate monitoring with minimized acoustic noise which is ideal for office environments. The S3600 Series operates quietly with a maximum of 28.63 dBA even at full power and 25° C (77° F) ambient.

More Powerful Switch with 10G/Multi-Gigabit Speed

  • 8 x or 16 x 10G/Multi-Gigabit Ethernet ports
  • 2 x Dedicated 10G SFP+ fiber ports

Fast and flexible solution for data, voice and video converged network

  • Non-blocking switching with 200Gbps bandwidth (XS508TM) and 360Gbps bandwidth (XS516TM)
  • Flexible wall-mounting and rackmounting option

Ideal companion to your NETGEAR Pro WiFi Access Point

Powerful Connectivity and Security

  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
  • Auto DoS (Denial of Service) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Egress Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
  • Cable test to troubleshoot connection issues
  • Easy-to-use Web browser-based management GUI available in English, German and Japanese
  • SNMP v1, v2c, v3 and RMON remote monitoring

Fully-integrated cloud-manageable devices

  • Optional NETGEAR Insight Remote/Cloud Management on both switch models. Easily activated through the local device GUI.

Smart IT, not Big IT

  • Scripting and management via direct text command using Lite Command Line Interface (CLI).
  • NETGEAR Switch Discovery Tool (NSDT) to discover, register and access the local browser interface to configure the switches

NETGEAR Quality and Reliability

  • Worry-free Limited Lifetime Warranty*, online technical chat support and Next Business Day (NBD) replacement.

Simply Activate NETGEAR Insight Cloud Management to manage your network. Anytime. Anywhere.

By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Unique advanced management features of these Insight Managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with auto-schedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud Portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight Managed devices added to the network
  • Centralized network configuration (policies) across Insight Managed Switches, Access Points, and ReadyNAS storage for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

Features and Benefits:

Hardware Features: Benefits:
Fully-integrated Cloud-manageable Devices Requires no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud Management mode through Web browser-based user interface and go.
10G BASE T Copper Ethernet Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth.
10G 1000BASE-X SFP ports Four dedicated 10G SFP+ ports for aggregation to the network core. Support for Fiber and Copper modules. Low Acoustics Temperature- and load-based fan-speed
Low Acoustics Temperature- and load-based fan-speed control allow for quiet operation in both desktop, wall mount or rack mount configuration.
Energy Efficient Ethernet (IEEE 802.3az) Maximum power reduction for ongoing operation cost savings.
Desktop and rack-mount (kit available) Flexible deployment on desktop and also supports wall mounting and rack mounting.
Ideal companion to your Pro WiFi access points Connect and manage all Pro WiFi access points from a single dashboard with NETGEAR Insight Remote Cloud Management.
Software Features: Benefits:
Remote setup, management, and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it.
Auto-join and Configure (Zero-Touch Provisioning) Additional Insight Managed devices added to the network automatically inherit settings and configuration.
Multi-site, Multi-network Single Pane-of-Glass View View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight.
Comprehensive IPv6 Support for Management, ACLs and QoS Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
Robust security features:
  • 802.1x authentication (EAP)
  • Port-based security by locked MAC
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
Comprehensive QoS features:
  • Port-based or VLAN 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based iegress rate limiting
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
Auto-VoIP, Auto-Voice VLAN Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration.
Auto-WiFi, Auto-Camera VLAN Auto-WiFi VLAN and Auto-Camera VLAN allows the switch to forward packets with the inputed OUIs of Wireless APs and cameras in a special VLAN with priority settings of that VLAN automatically.
IGMP Snooping Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Protected Ports Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP Snooping Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
Dynamic VLAN Assignment (RADIUS) IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
Link Aggregation (LACP) Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections.
Loop Prevention and Auto-DoS Prevention Detect and prevent (auto port shutdown) accidental network loops and protect against DoS attacks.
PoE Timer and Scheduling Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/ off of PoE ports.
Port Mirroring and Cable Test Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables.
Dual Firmware Images Dual firmware images for transparent firmware updates with minimum service interruption.
Firmware Updates from Cloud Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere!

At a Glance:

Hardware at a glance
  Front Rear Side
Model name Form-Factor 1G/2.5G 1000BASE-T RJ-45 Copper Ports 10G SFP+ Uplink Power Supply Fans
XS508TM Desktop, wall mount and rack mount 8 2 1 internal PSU, fixed 2 internal fans, fixed
XS516TM Desktop, wall mount and rack mount 16 2 1 internal PSU, fixed 3 internal fans, fixed

Software at a glance
Management IPv4/IPv6 ACL and QoS IPv4/IPv6 Multicast Filtering VLANs IEEE (802.3az) Energy Efficient Ethernet Convergence Link Aggregation
Web Browser-based GUI (HTTP/HTTPS),

RMON, SNMP

NETGEAR Insight Cloud Management via mobile App and Insight Portal
L2, L3, L4 Ingress IGMP Snooping, Querier Static, Dynamic, VoIP, Voice, WiFi, Camera Yes LLDP-MED, RADIUS, 802.1X LACP and Manual Static
LAGs (up to 8 LAGs with max 8 members)

Performance at a glance
Model Name Packet buffer CPU ACL MAC Address Table ARP Table VLANs Fabric Latency (64-Byte Packet) Multicast IGMP Group
XS508TM 2 MB 600 MHz Single Core
1GB RAM
256MB SPI FLASH
100 shared (ingress) 16K Max MAC
512 VLANs
200 Gbps line-rate 1G Copper:<2.37μsec
2.5G Copper:<5.66μsec
10G SFP+ Fiber:<0.84μsec
512
XS516TM 4 MB 1.25 GHz Single Core
1GB RAM
256MB SPI FLASH
100 shared (ingress) 16K Max MAC
512 VLANs
360 Gbps line-rate 1G Copper:<2.02μsec
2.5G Copper:<6.20μsec
10G SFP+ Fiber:<0.90μsec
512

Specifications:

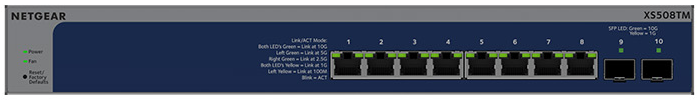

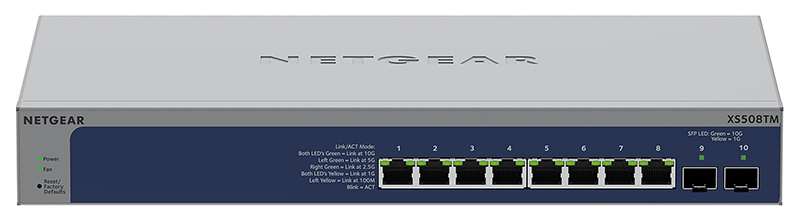

XS508TM Front View

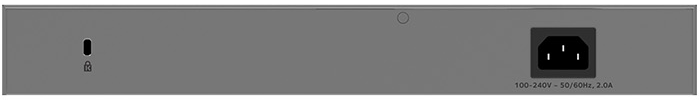

XS508TM Rear View

Models: XS508TM XS516TM
Product Specifications
1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G) - 1000BASE-T 8 16
10G SFP+ (fiber) ports (1G/10G) - 1000BASE-X 2 (dedicated) 2 (dedicated)
Power Supply Internal Power Supply Internal Power Supply
LEDS
Front (per device) Power (with Cloud Mode Indicator), Fan Power (with Cloud Mode Indicator), Fan
Front (per port) Speed/Link/Activity Speed/Link/Activity
Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management)
Discovery, setup, monitoring and management NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser
Remote/Cloud management Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal
Centralized network configuration (policies) Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs
Device auto-join and configure (zero-touch provisioning Additional Insight Managed devices added to the network automatically inherit the network configuration
Multi-site, multi-network single pane-of-glass view Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal
Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specifications
CPU 600 MHz Single Core
1GB RAM
256MB SPI FLASH
1GHz dual core
256MB RAM
64MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports) 2 MB 4 MB
Forwarding modes Store-and-forward Store-and-forward
Bandwidth (non-blocking, full duplex) 200Gbps 360Gbps
Priority queues 8 8
Priority queuing Weighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses) 16K 16K
Multicast groups 512 512
Number of VLANs 512 512
Number of DHCP snooping bindings 8k 8k
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) 148.8 148.8
1G Copper standard latency (μsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte 64-byte: 2.37μsec
1518-byte: 2.34μsec
9216-byte: 2.32μsec
64-byte: 2.02μsec
1518-byte: 2.04μsec
9216-byte: 2.02μsec
2.5G Copper standard latency (μsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte 64-byte: 5.66μsec
1518-byte: 5.65μsec
9216-byte: 5.65μsec
64-byte: 6.20μsec
1518-byte: 6.59μsec
9216-byte: 6.23μsec
10G SFP+ Fiber latency (μsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 0.84μsec
1518-byte: 0.82μsec
9216-byte: 0.82μsec
64-byte: 0.90μsec
1518-byte: 0.89μsec
9216-byte: 0.89μsec
Jumbo frame support Up to 9K packet size Up to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 28.63 dBA 27.35 dBA
Mean Time Between Failures (MTBF) @ 25°C 818,977.9 hours (93.5 years) 506,741.9 hours (57.8 years)
L2 Services - VLANs
Models: XS508TM XS516TM
IEEE 802.1Q VLAN tagging Yes Yes
MAC-based VLANs Yes Yes
Protocol-based VLAN Yes Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP Yes, based on protocols (SIP). Prioritzes traffic to a higher queue
Voice VLAN Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
Auto-Voice VLAN Yes Yes
Auto-Camera VLAN Yes Yes
Auto-WiFi VLAN Yes Yes
GARP with GVRP Yes Yes
Private VLAN Yes Yes
L2+/Lite L3 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes Yes
IEEE 802.3ad - LAGs (LACP) Yes Yes
IEEE 802.3x (full duplex and flow control) Yes Yes
L2+/Lite L3 Services - Multicast Filtering
IGMP snooping (v1, v2 and v3) Yes Yes
MLD snooping support (v1 and v2) Yes Yes
IGMP snooping queries Yes Yes
MLD snooping querier (v1) Yes Yes
Multicast groups 512 512
Multicast VLAN Registration (MVR) Yes Yes
L3 Services - Routing
DHCP client Yes Yes
DHCP snooping Yes Yes
Number of DHCP snooping bindingsg 256 256
IPv4 static routing 64 64
IPv6 static routing 32 32
VLAN routing Yes Yes
Host ARP table (number of entries) 1024 ARP 1024 ARP
ICMP Router Discovery Protocol (IRDP) Yes Yes
Number of IP VLAN interfaces (routed VLANs) 15 15
DHCP Services
DHCP client Yes Yes
DHCP snooping Yes Yes
Number of DHCP snooping bindingsg 8k 8k
DHCP Server Yes Yes
DHCP Relay Yes Yes
DHCP IPv6 Server Yes Yes
DHCP IPv6 Relay Yes Yes
Link Aggregation
Models: XS508TM XS516TM
IEEE 802.3ad - LAGs (LACP) Yes Yes
Manual Static LAG Yes Yes
# of Static or LACP LAGs
# of members in each LAG
8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes Yes
LLDP-MED Yes Yes
SNMP v1, v2c, v3 v1, v2c, v3
RMON group 1,2,3,9 Yes Yes
Network Security
IEEE 802.1x Yes Yes
Guest VLAN Yes Yes
RADIUS-based VLAN assignment via .1x Yes Yes
MAC-based .1x Yes Yes
RADIUS accounting Yes Yes
Access Control Lists (ACLs) L2 / L3 / L4 L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6) Yes Yes
MAC-based ACLs Yes Yes
TCP/UPD-based ACLs Yes Yes
MAC lockdown Yes Yes
MAC lockdown by the number of MACs Yes Yes
Control MAC # Dynamic learned entries 4096 4096
Control MAC # static entries 48 48
IEEE 802.1x RADIUS port access authentication Yes Yes
Port-based security by locked MAC addresses Yes Yes
Broadcast, multicast, unknown unicast storm control Yes Yes
DoS attacks prevention Yes Yes
Dynamic ARP inspection Yes Yes
Protected ports Yes Yes
Quality of Service (QoS)
Models: XS508TM XS516TM
Port-based rate limiting Yes, ingress and egress Yes, ingress and egress
Port-based QoS Yes Yes
Support for IPv6 fields Yes Yes
DiffServ QoS Yes, ingress Yes, ingress
IEEE 802.1p COS Yes Yes
Destination MAC and IP Yes Yes
IPv4 and v6 DSCP Yes Yes
IPv4 and IPv6 ToS Yes Yes
TCP/UDP-based Yes Yes
Weighted Round Robin (WRR) Yes Yes
Strict priority queue technology Yes Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
Other Features
Loop detection & prevention Yes Yes
DNS Client Yes Yes
Option to enable/disable BPDU flooding when STP is disabled Yes Yes
Option to enable/disable the flooding of EAPOL when 802.1x is disabled Yes Yes
Management, Monitoring & Troubleshooting
Models: XS508TM XS516TM
Cloud/Remote management Yes Yes
Insight mobile app & Insight Cloud Portal management Yes Yes
uPnP Discovery Yes, activated by default Yes, activated by default
Networking monitoring Yes Yes
Data/performance logs Yes Yes
Centralized network configuration/policies (network-centric management) Yes Yes
Device auto-join and configure (zero-touch provisioning) Yes Yes
Multi-site, multi-network single pane-of-glass view Yes Yes
Multi-switch, multi-port concurrent configuration Yes Yes
Network/global password (for all Insight Managed devices on a network) Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)
Password management Yes Yes
IP Access List Yes Yes
Configurable management VLAN Yes Yes
Admin access control via RADIUS and TACACS+ Yes Yes
IPv6 management Yes Yes
SNTP client over UDP port 123 Yes Yes
Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal) Yes Yes
SNMP v1/v2c Yes Yes
SNMP v3 with multiple IP addresses Yes Yes
RMON group 1, 2, 3, 9 Yes Yes
Port mirroring Yes Yes
Many-to-one port mirroring Yes Yes
Cable test utility Yes Yes
Ping and tracerout client Yes Yes
Web browser-based graphical user interface (GUI) Yes Yes
HTTP/TLS Web-based access (version) Yes (v1.2) Yes (v1.2)
HTTP firmware upload/download Yes Yes
File transfers (uploads, downloads) TFTP / HTTP TFTP / HTTP
Dual software (firmware) image Yes Yes
Memory and flash log Yes Yes
Syslog (Server) Yes Yes
Physical Specifications
Models: XS508TM XS516TM
Dimensions 330 x 206 x 43.2 mm (13 x 8.12 x 1.7 in) 330 x 206 x 43.2 mm (13 x 8.12 x 1.7 in)
Weight 2.2kg (4.85lb) 2.45kg (5.4lb)
Mounting options Wall mount and rack mount option
Power Consumption
Max power (worst case, all ports used, line-rate traffic) (Watts) 32.7W 64.8W
Min power (link-down standby) (Watts) 12.7W 27.2W
Heat Dissipation (BTU/hr) Max: 111.689 BTU/hr
Min: 43.358 BTU/hr
Max: 221.295 BTU/hr
Min: 92.895 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default) Yes (deactivated by default)
Auto power down Yes Yes
Fan(s) (temperature- and load-based speed control) 2 3
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature –20° to 70°C (– 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Warranty and Support
ProSAFE Lifetime Warranty Included, Lifetime*
Next-Business-Day (NBD) Replacement Included, Lifetime*
Technical support via phone 90 days free from date of purchase*
24x7 Online Chat Techinical support Included, Lifetime*
ProSUPPORT OnCall 24x7 Service Packs** Category 2:
PMB0312-10000S (1 yr.)
PMB0332-10000S (3 yrs.)
PMB0352-10000S (5 yrs.)
Insight 1-year Insight subscription included
Package Contents
All Models
  • Smart Switch
  • Power cord (localized to country of sale)
  • Rack-mounting kit
  • Rubber footpads for tabletop installation
  • Quick install guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Network Diagram:

Get Multi-Gigabit and 10G Speed that your business deserves

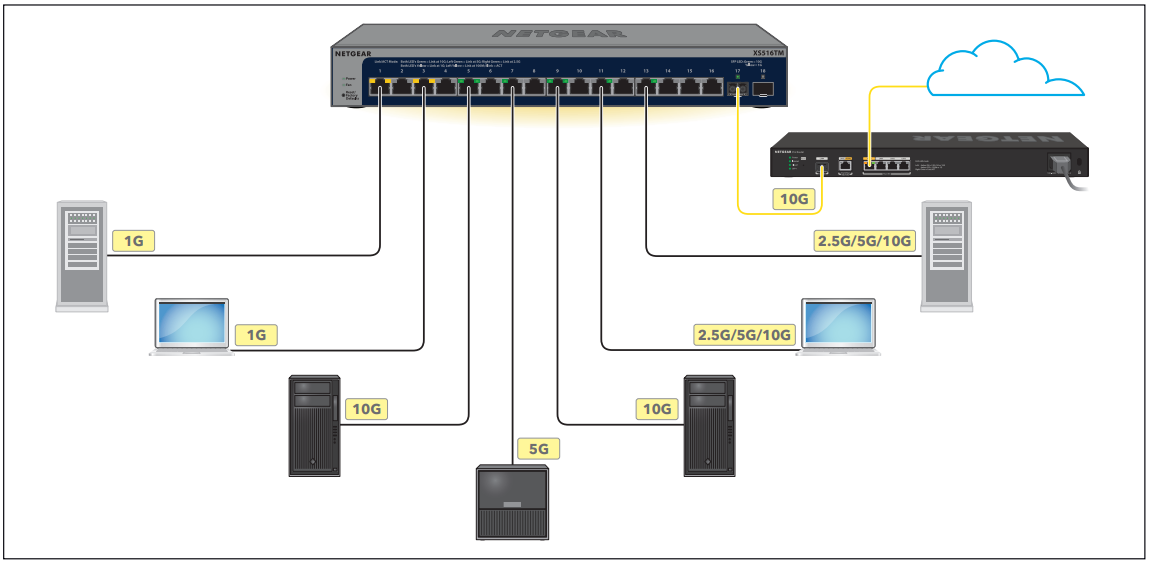

XS516TM Sample Connection Diagram
XS516TM Sample Connection Diagram

Pricing Notes:

Netgear Products
NETGEAR Smart Switches
NETGEAR XS508TM 8-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports
#XS508TM-100NAS
List Price: $1,489.01
Add to Cart for Pricing
