NETGEAR GS116
ProSafe 16-Port Gigabit Desktop Switch

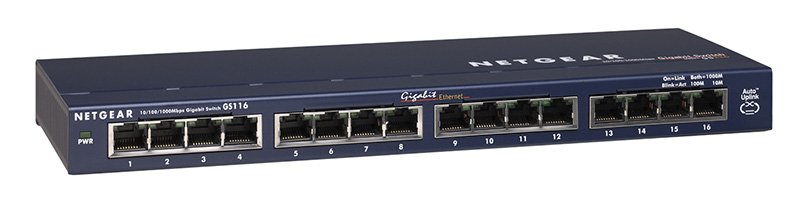

NETGEAR GS116 ProSafe® 16-Port Gigabit Desktop Switch

NETGEAR Products
NETGEAR Unmanaged Switches
ProSafe 16-Port Gigabit Desktop Switch
#GS116NA
List Price: $149.99
Our Price: $109.00

More pricing below, click here!

Overview:

Product Features:

  • 16 high-speed, auto-sensing 10/100/1000 Mbps Ethernet connections
  • Integrates 10, 100, & 1000 Mbps devices within a network
  • Silently delivers up to 2000 Mbps on each port

Power up Your Small Network to Gigabit Speeds

Now you can have a powerful, high-speed network on a small scale. NETGEAR’s ProSafe GS116 Gigabit Ethernet Switch lets you build a system that provides full, dedicated 1000 Mbps connections so you can move very large files across your network instantly. The standards-based GS116 helps to protect your existing and future network infrastructure investments by painlessly integrating other 10, 100, and 1000 Mbps devices. This potent switch is ideal for workgroups or quickly upgrading workstations to full Gigabit speed, plus it’s packed with ease-of-use features to simplify your workday experience. It’s compact design fits neatly into small work spaces and, since it’s self-cooling without a fan, it runs silently and unobtrusively.

Power-Packed

Moves huge files fast! Features 16 high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because copper Gigabit Ethernet is a full duplex standard, you can get up to 2000 Mbps on each port. The GS116 supports jumbo frames up to 9,000 Bytes for extra large transfers.

Versatile

Integrates 10, 100, and 1000 Mbps devices on the same network and will honor Layer 2 802.1p and Layer 3 DSCP traffic priority tags. Every port automatically senses the right speed and full/ half duplex mode, while Auto UplinkTM technology automatically adjusts for straight-through or crossover cables.

Accommodating

LEDs embedded in each of the 16 RJ-45 jacks make for easy monitoring. Space-saving dimensions are ideal for desktop or wall-mounting in home, small office, workgroups, departments and conference room environments. Its durable metal case has no fan for silent operation. Compatible with PC, Macintosh, Unix, or Linux operating systems.

Solid

Providing plug-and-play simplicity with exceptional performance and reliability, the GS116 is a cost-effective solution for your growing network. This switch is made to last and NETGEAR backs it with a lifetime warranty.

Specifications:

NETGEAR GS116 Specifications
Network Protocol and Standards Compatibility
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Honors 802.1p priority tags
  • Honors DSCP priority tags
Network Ports
  • 16 RJ-45 auto-sensing 10/100/1000 Mbps UTP ports
Performance Specifications
  • Forwarding modes: Store-and-forward
  • Bandwidth: 32 Gbps (non-blocking)
  • Forward rate (10 Mbps port): 14,800 packets/sec
  • Forward rate (100 Mbps port): 148,000 packets/sec
  • Forward rate (1000 Mbps port): 1,488,000 packets/sec
  • Latency (100 to 100 Mbps): 40 μ (max)
  • Latency (1000 to 1000 Mbps): 10 μ (max)
  • MAC Address database size: 4,000
  • Queue buffer KBytes: 320
  • Mean time between failure (MTBF): 110,000 hours (~13 years)
LEDs
  • Power, activity and link indicators for each port
  • Link and speed indicators built into each RJ-45 port
AC Power Supply
  • Power Consumption: 18W max
  • 12V @ 1.5A DC input
Physical Specifications
  • Dimensions (w x d x h): 285 x 103 x 27 mm (11.22 x 4.06 x 1.06 in)
  • Weight: 0.99 kg (2.2 lb)
Environmental Specifications
  • Operating temperature: 0º to 50º C (32º to 122° F)
  • Operating humidity: 10% to 90% non-condensing
Electromagnetic Compliance
  • CE mark, commercial
  • FCC Part 15 Class A
  • EN 55 022 (CISPR 22)
  • VCCI Class A
  • C-Tick Class A
Safety Agency Approvals
  • CE mark, commercial
  • UL listed (UL 1950)
  • C-Tick
System Requirements
  • UTP Category 5 or better cables
  • Network card for each PC or server
  • Network software (e.g., Windows®, Linux®, Mac OS
Warranty
  • Switch: NETGEAR Lifetime Warranty
  • Power adapter: NETGEAR 2-year Warranty
Package Contents
  • ProSafe 6-port Gigabit Desktop Switch (GS116)
  • Wall-mount kit
  • AC adapter
  • Installation guide
  • Warranty/support information card

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

Diagram:

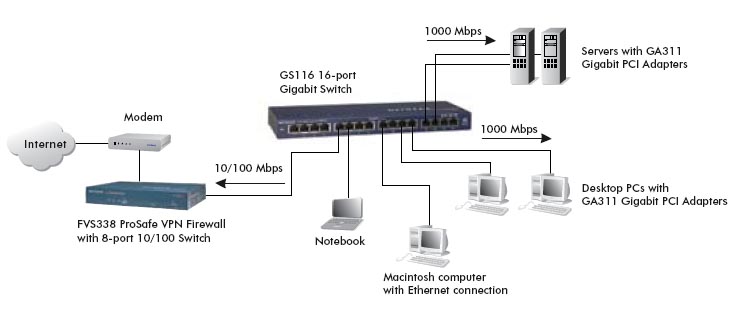

NETGEAR GS116 Diagram

Documentation:

Download the NETGEAR GS116 Datasheet (PDF).
